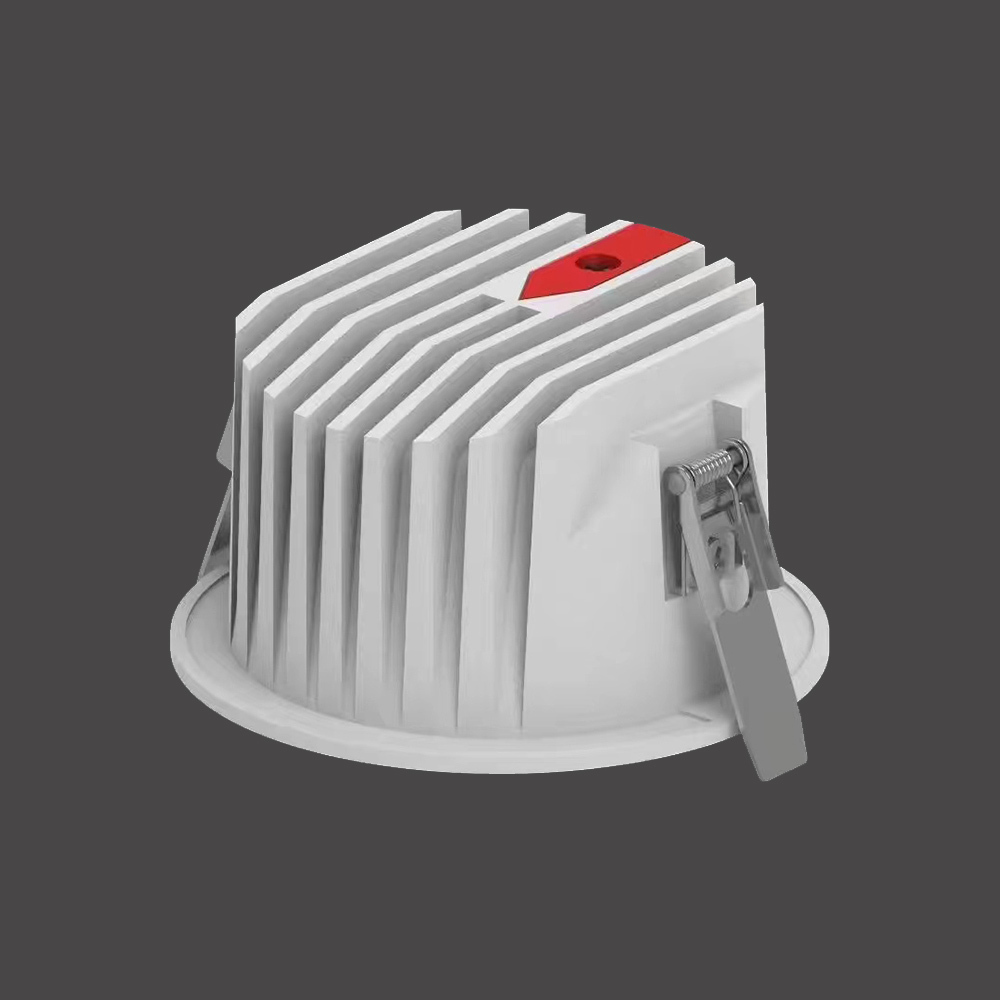

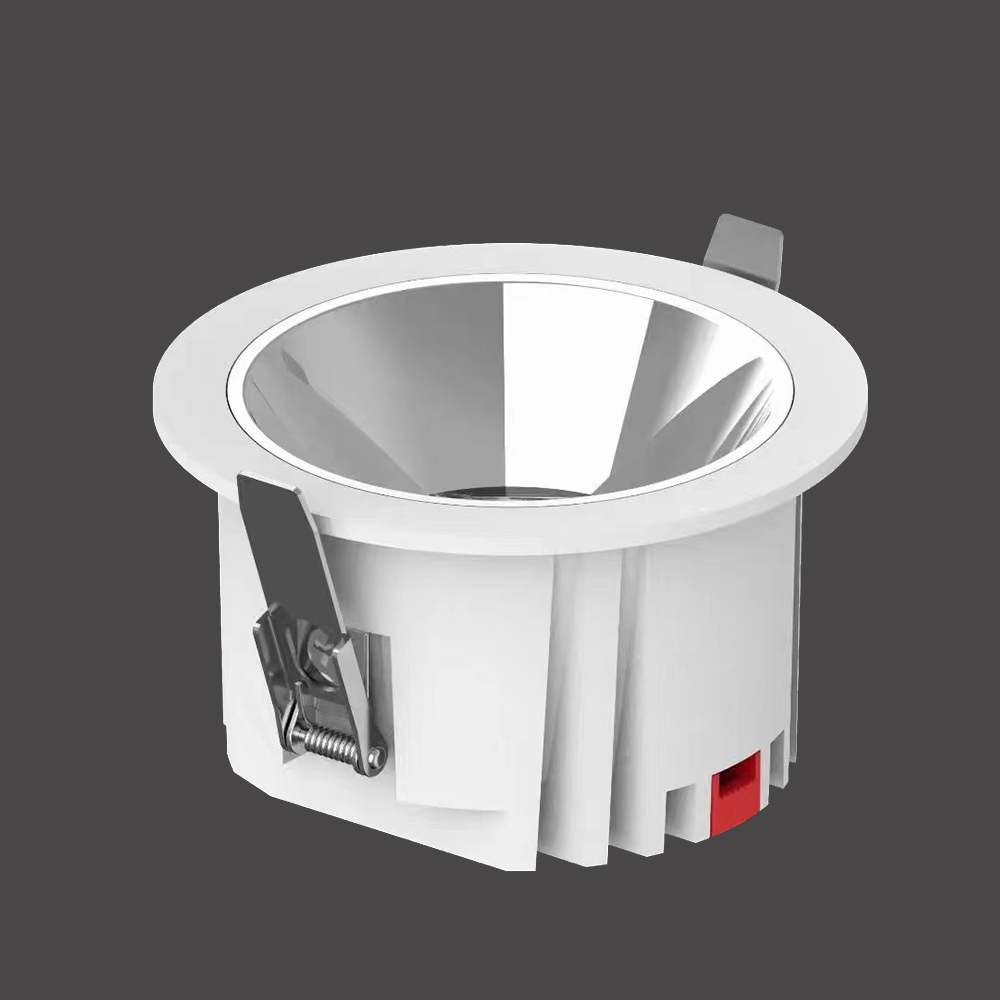

TS-DO2535WM
Technical Datas:
Product code: TS-DO12WECOB
Power (wattage): 12W
Cut-out: Φ75MM
Size: Φ85xH48MM
Beam angle: 15°, 24°, 36°, 50°
IP Rate: IP40

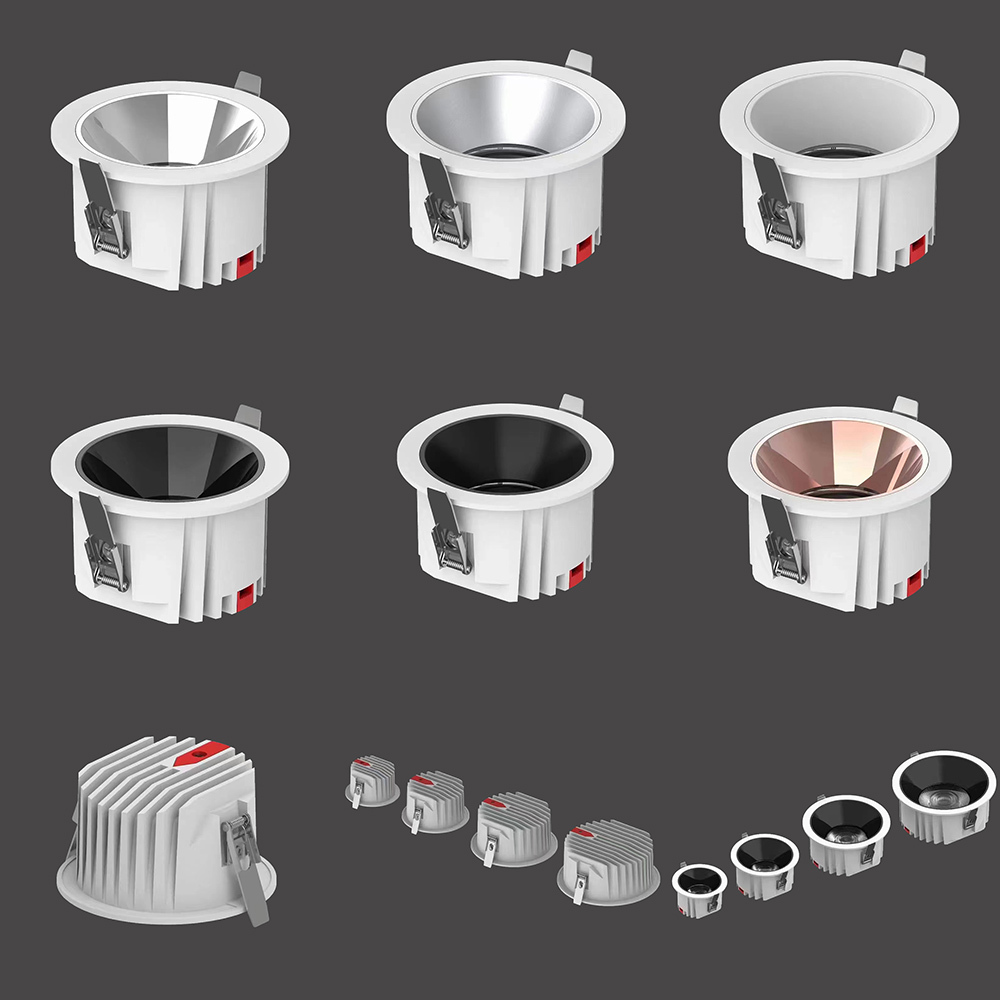

Reflector color: Matte Black/ Matte White / Matte Sliver/ Gun Black/ Gloden
Input voltage: 220-240V AC 50/60HZ OR 85-265VAC
LED Driver: Lifud / Eaglerise / Philips / Osram
Flicker Free: Yes
Anti Glare: Yes
Dimmable: Avaliable (Triac, 0-10V, Dali)
LED source: COB (Bridgelux, CREE, Philips)
Light Color: (27/30/40/50/60) x100K Warm/ Neutral / Cool
LED Lumens: 1200lm+/-3%
LED CRI: >95Ra
Body Color: White / Black
Materials: Aluminium body + Reflector
Operating Temp.: -30 ~ 75℃
Life Span: 50000 Hours
Cetificates: CE-EMC, CE-LVD, RoHS, FCC, C-tick
 |
 |
 |
 |

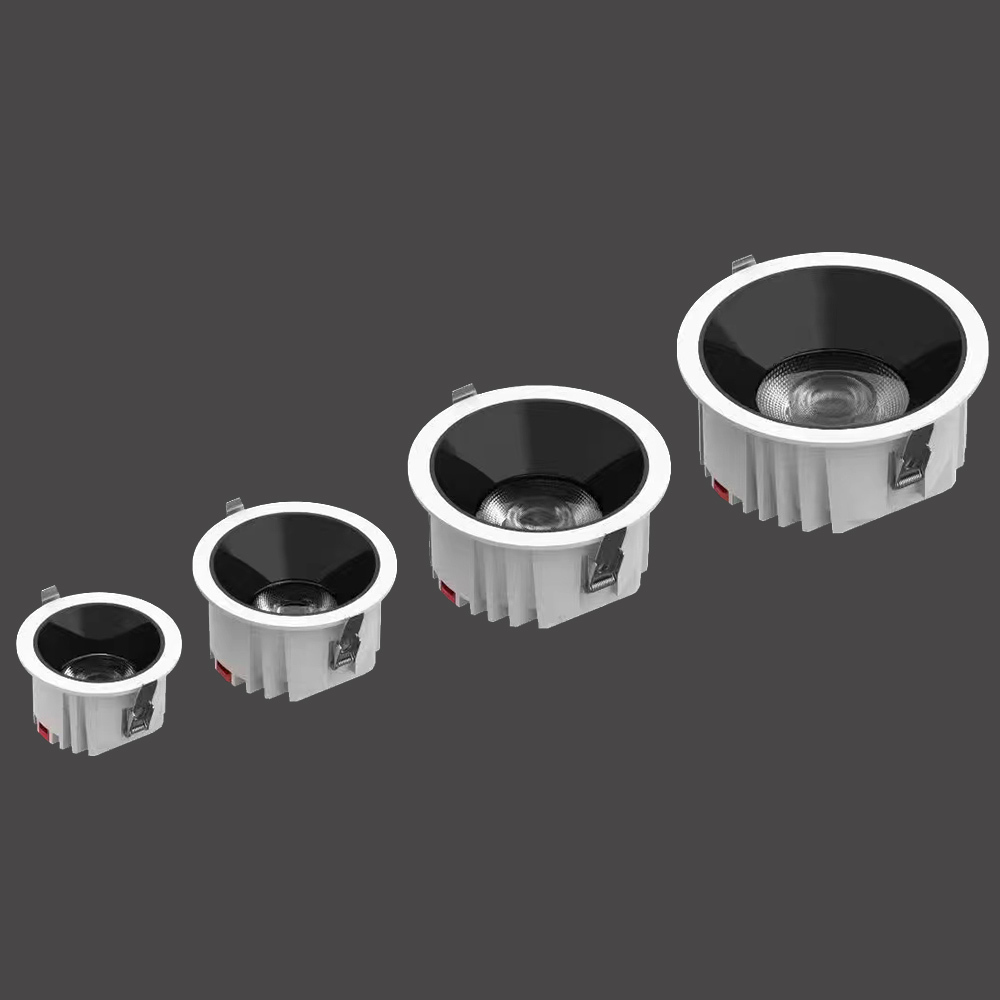

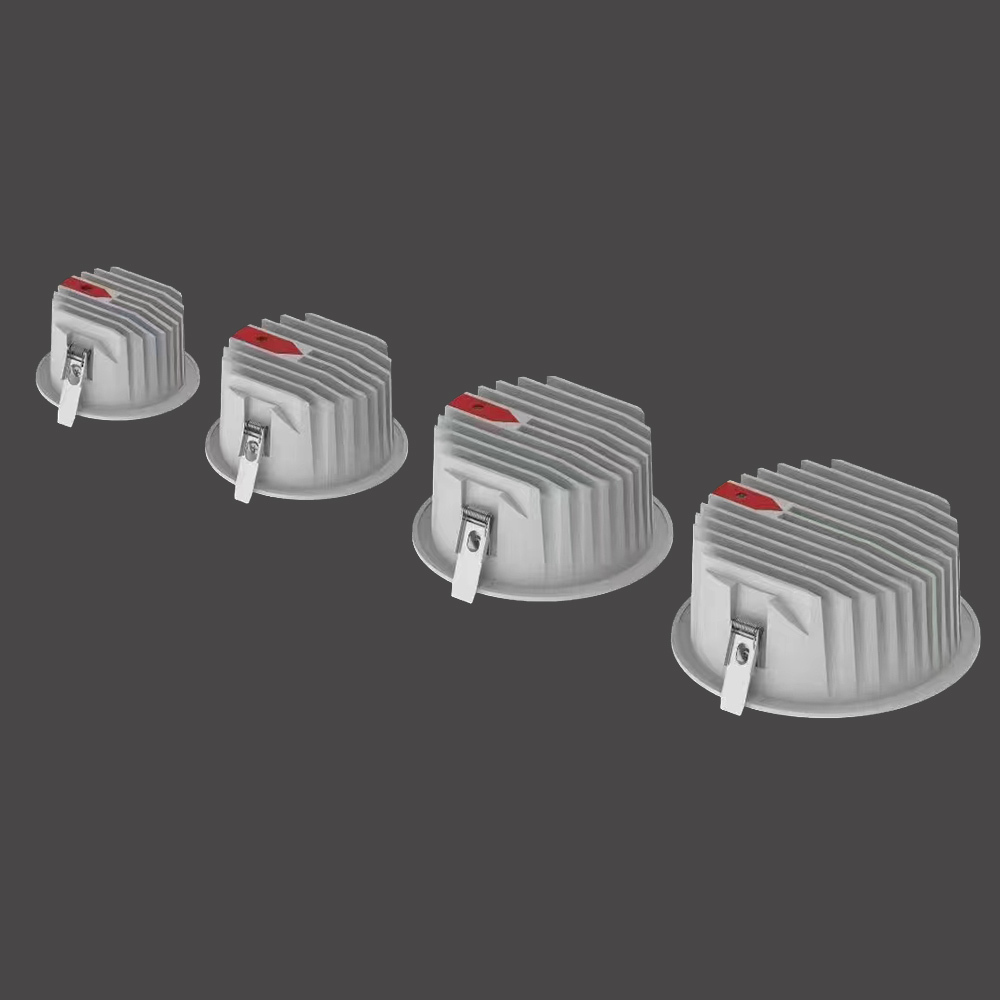

| Model No. | TS-DO12WECOB | TS-DO15WECOB |
TS-DO25WECOB | TS-DO30WECOB |
| Wattage | 12W | 15W | 25W | 30W |
| Cut-out | Φ75mm | Φ95mm |
Φ120mm | Φ145mm |
| Input Voltage | 85-265V AC 50/60 Hz | |||
| Power Factor | PF > 0.95 | |||
| LED Source | Bridgelux / Philips / Cree COB chip |
|||
| CCT | Warm White (2700-3500K), Neutral White(4000-4500K), Cold White(5000-6500K) | |||
| Lumens | 1200lm | 1500lm | 2500lm | 3000lm |
| CRI | CRI > 80 (Ra) | |||
| Beam Angle | 15° / 24°/ 36°/ 50° | |||
| LED Driver | Lifud / Eaglerise / Philips / Osram Brand | |||
| IP Rate | IP40 | |||
| Material | Aluminium Body + Reflector | |||
| Size | D85*H48mm | D105*H55mm |
D135*H63mm | D160*H68mm |
| Body Color | White / Black | |||
| Operating Temp. | -30℃ ~ 75℃ | |||
There are many benefits of using 12W COB downlights LED flicker free and anti glare for your home lighting, such as:
