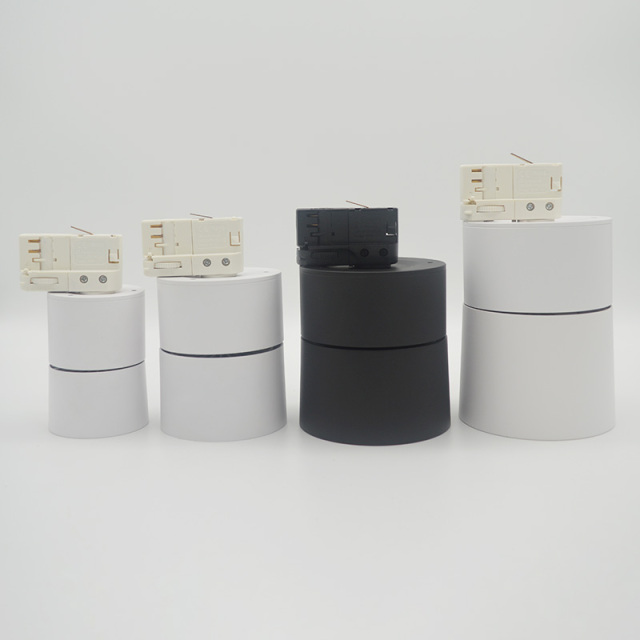

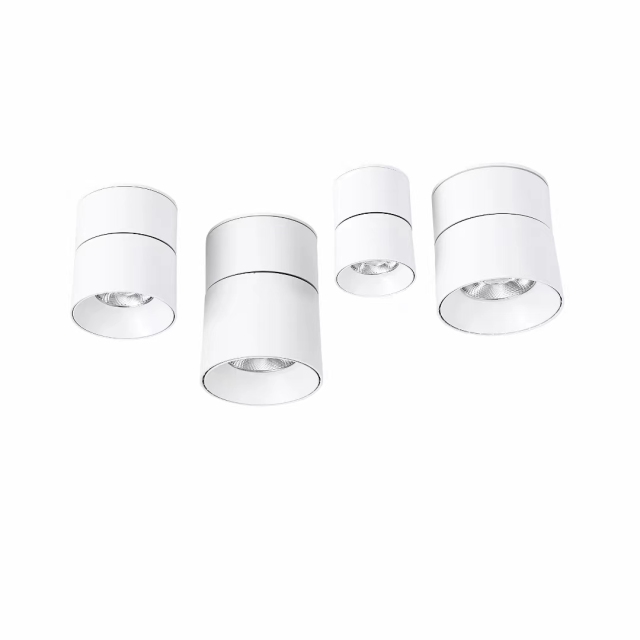

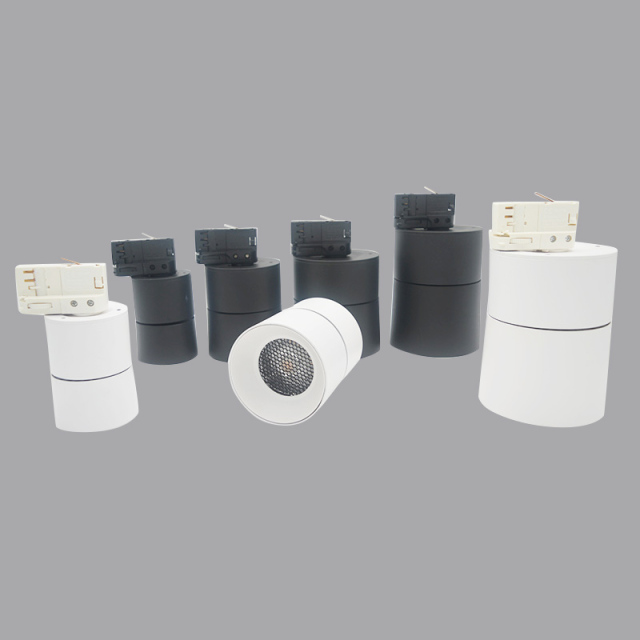

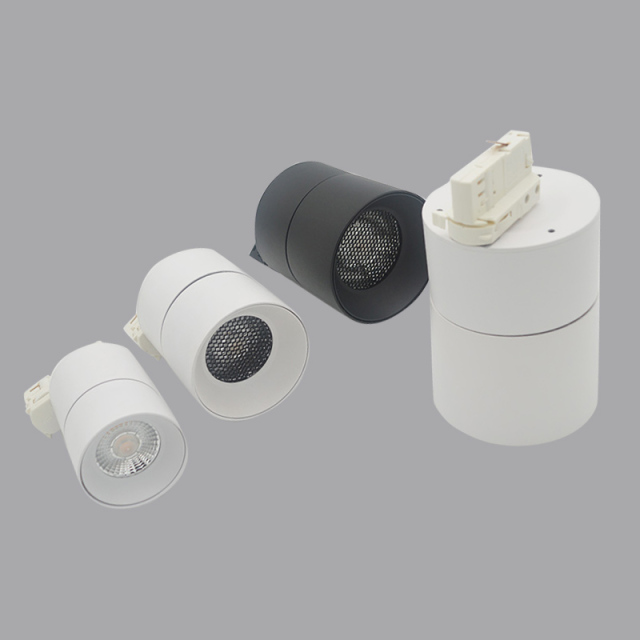

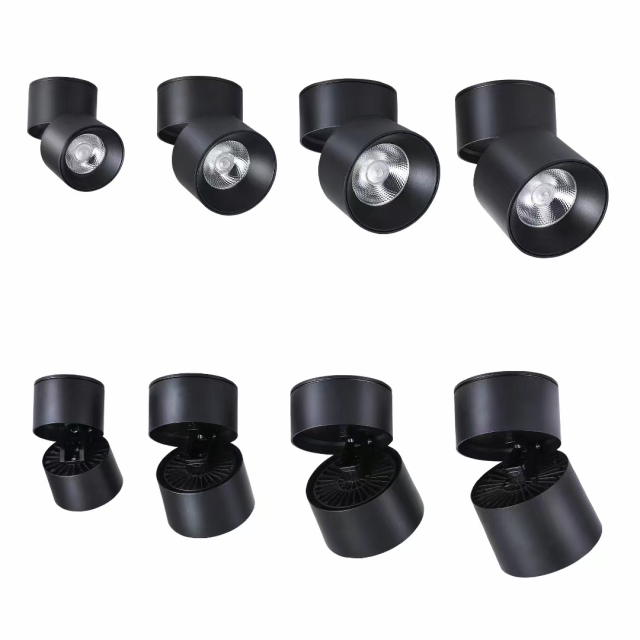

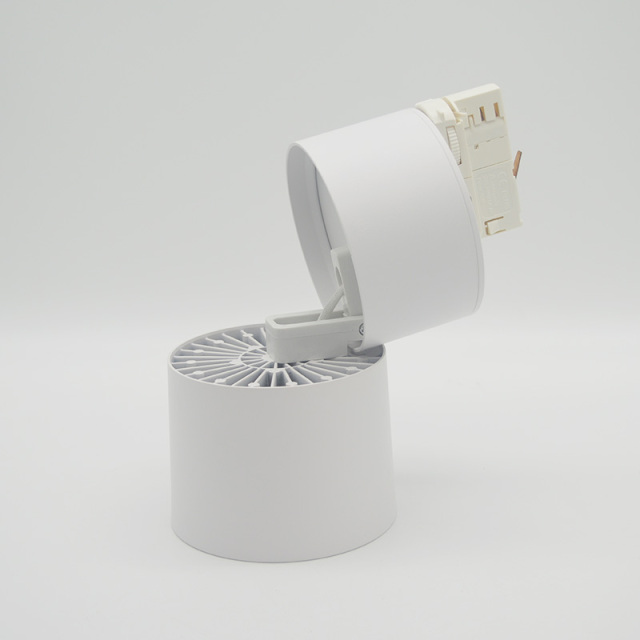

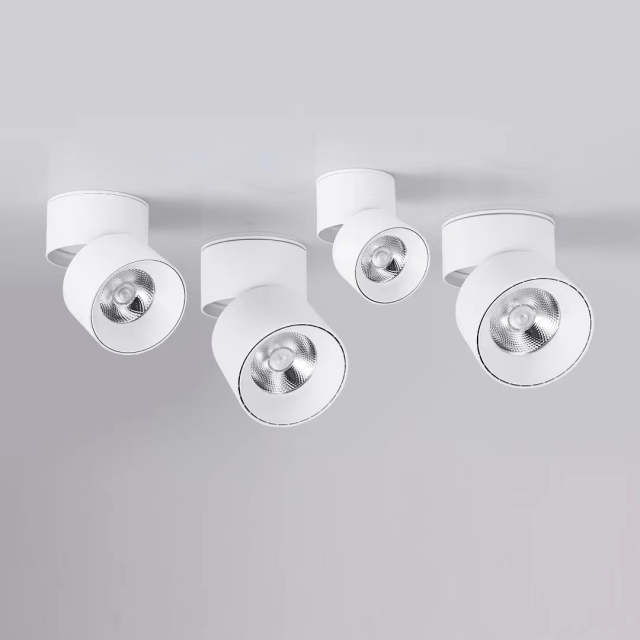

LED ceiling track lighting with Honeycomb 10W 20W 30W 40W

No.TS-TR10WM2/20WM2/30WM2/40WM2
Discover the elegance and flexibility of LED ceiling track lighting. Perfect for residential, commercial, and hospitality settings, our LED ceiling track lighting systems offer unparalleled control, energy efficiency, and design versatility. Contact us to illuminate your space with custom lighting solutions.
Watts:
10W
20W
30W
40W
Adaptor:
2 Phase (2 wires / 3 wires )
3 phase ( 4 wires )
Dimmable:
Non-dimmable
Traic Dimming
0-10V Dimming
Dali Dimming
Color Temp.:
Warm white
Neutral White
Cool White
$ *****
Get The Latest Quote
Add to Quote List View Quote List

  • Description

  • Application

  • Installation

LED ceiling track lighting with Honeycomb 10W 20W 30W 40W

Products Information

Track Base Version
LED ceiling track lighting with Honeycomb LED ceiling track lighting with Honeycomb


Code TS-TR10WM2 TS-TR20WM2 TS-TR30WM2 TS-TR40WM2
Rated Power 10W 20W 30W 40W
Function Foldable,Rotatable Foldable,Rotatable Foldable,Rotatable Foldable,Rotatable
Input Current 45mA@220V 91mA@220V 136mA@220V 182mA@220V
Lumens 1000lm +/-5% 2000lm +/-5% 3000lm +/-5% 4000lm +/-5%
Beam Angle 10°, 20°, 30° 10°, 20°, 30° 10°, 20°, 30° 10°, 20°, 30°
Size D70xH100MM D90xH110MM D110xH115MM D110xH150MM

Surface Mounted Version

LED ceiling track lighting with Honeycomb LED ceiling track lighting with Honeycomb



Code TS-TR10WM2SM TS-TR20WM2SM TS-TR30WM2SM TS-TR40WM2SM
Rated Power 10W 20W 30W 40W
Function Foldable,Rotatable Foldable,Rotatable Foldable,Rotatable Foldable,Rotatable
Input Current 45mA@220V 91mA@220V 136mA@220V 182mA@220V
Lumens 1000lm +/-5% 2000lm +/-5% 3000lm +/-5% 4000lm +/-5%
Beam Angle 10°, 20°, 30° 10°, 20°, 30° 10°, 20°, 30° 10°, 20°, 30°
Size D70xH100MM D90xH110MM D110xH115MM D110xH150MM


Common Data


Products Name Foldable & Rotatable Track or Surface LED Spot Light
Body Color Sandy White / Sandy Black
Reflector Color Sandy White / Sandy Black
Materials Aluminium Body + Lens
IP Rate IP44
Add Honeycomb Not Available
Anti glare Yes
UGR <19
Honey Comb avaliable
Flicker Free Yes
Installation Surface mounted Type OR Track Mounted Type
Certificates CE-EMC, CE-LVD, RoHS, FCC, C-tick

Electrical Data


Working Voltage 220-240VAC / 100-277VAC
Frequancy 50/60Hz
Power Factor(PF) >0.6 / >0.9
Driver Brand Lifud / Eaglerise / Kegu / Others
Dimmable Non-DIM / TRIAC / 0-10V / Dali / Push Dimming
Total Harmonic Distortion(THD) ≤15%

Lighting Source Data


Colour Temperature 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White
Lighting Efficiency 100lm/W (COB)
COB chip Brand Bridgelux / CREE / Philips / Osram COB
Color Render Index Ra>90 / Ra>95
SDCM <5
Anti Glare Yes (UGR<19)
Flicker Free Yes

Application


Ambient Humidity 10%~90%
Ambient Temp. -20 ~ 50℃
Storage Temp. -30 ~ 80℃
Working Temp. < 60℃ (Ta=25℃)
Life Span >50000 Hours (LM80)
Warranty 3 Years
