TS-SP07121824WF

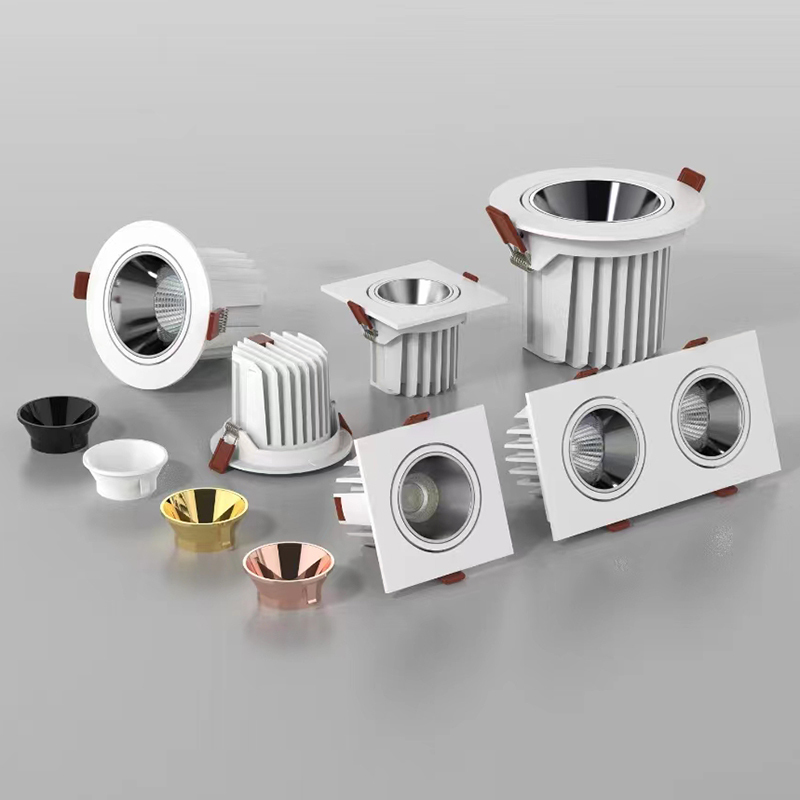

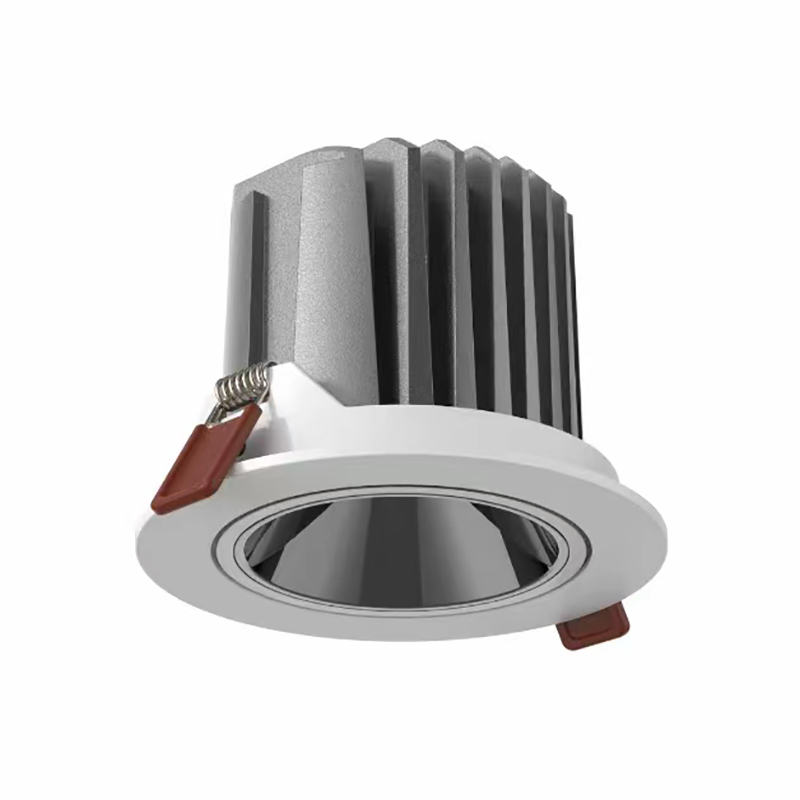

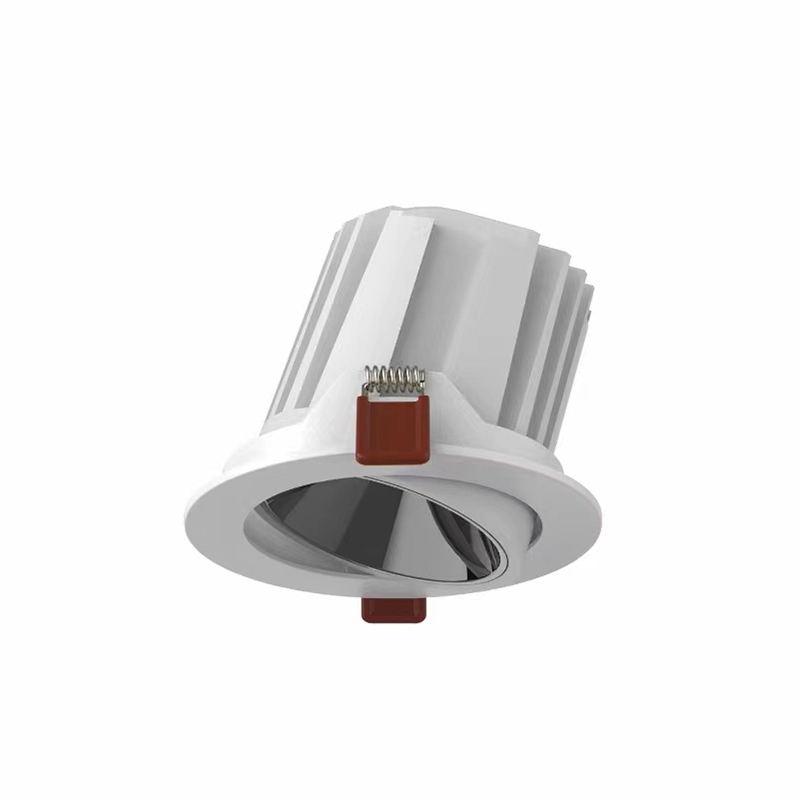

In the realm of modern lighting solutions, LED downlights have emerged as a pinnacle of efficiency, versatility, and aesthetics. Our LED Downlights COB Dimmable with Dali 0-10V dimming technology takes this innovation to new heights, offering unparalleled control over light intensity and ambiance, perfect for commercial spaces, residential interiors, and beyond.
 |
 |
| Code | TS-DO12WU | TS-DO20WU | TS-DO25WU |
|---|---|---|---|
| Rated Power | 12W | 20W | 25W |
| Cut-Out | D 75MM | D 95MM | D 120MM |
| Input Current | 55mA@220V | 91mA@220V | 113mA@220V |
| Lumens | 1200lm +/-5% | 2000lm +/-5% | 2500lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | D85xH60MM | D110xH80MM | D140xH90MM |
 |
 |

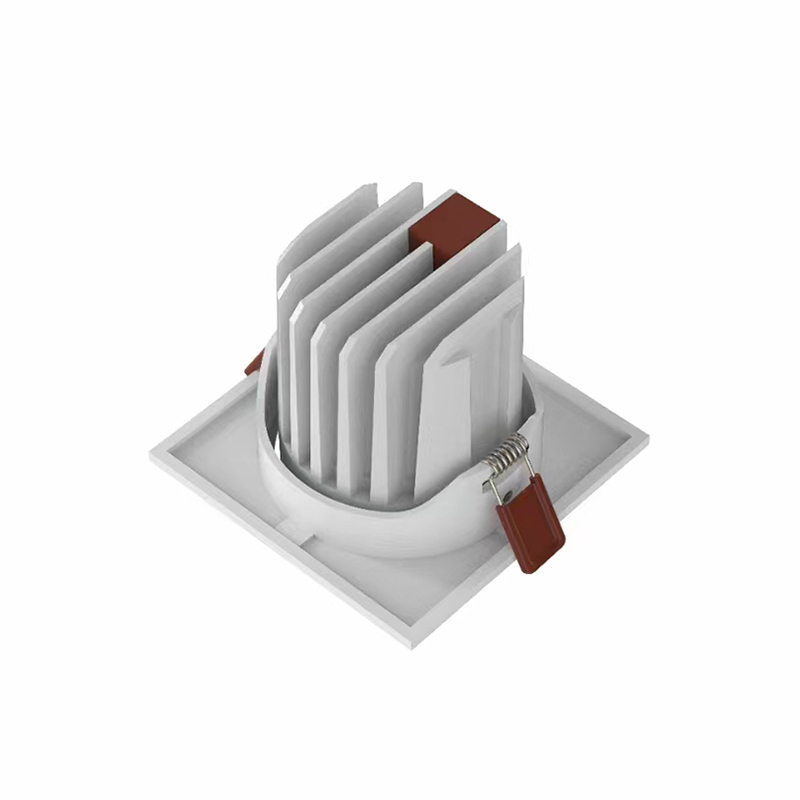

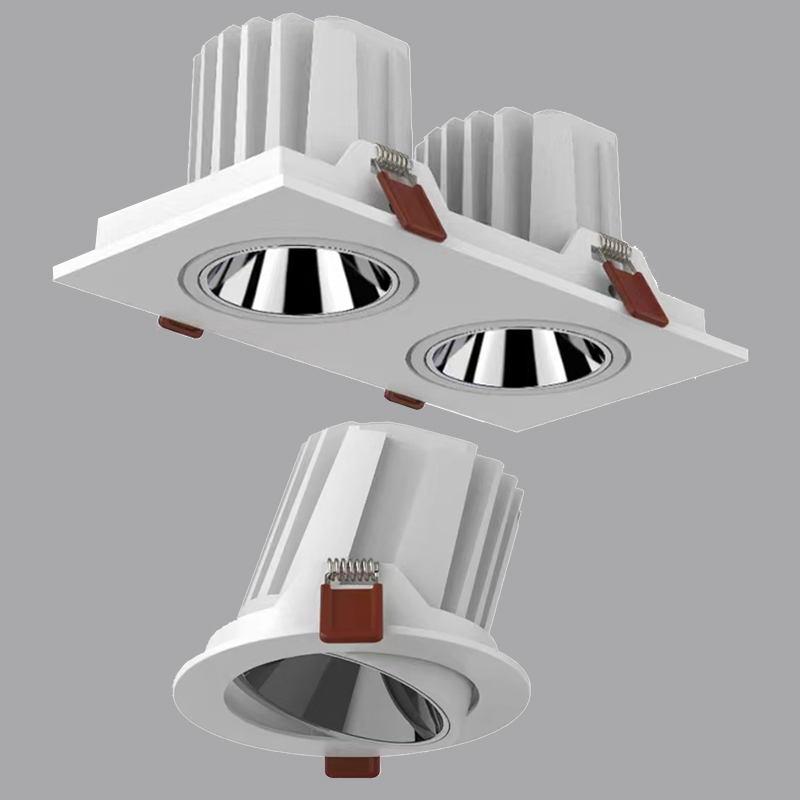

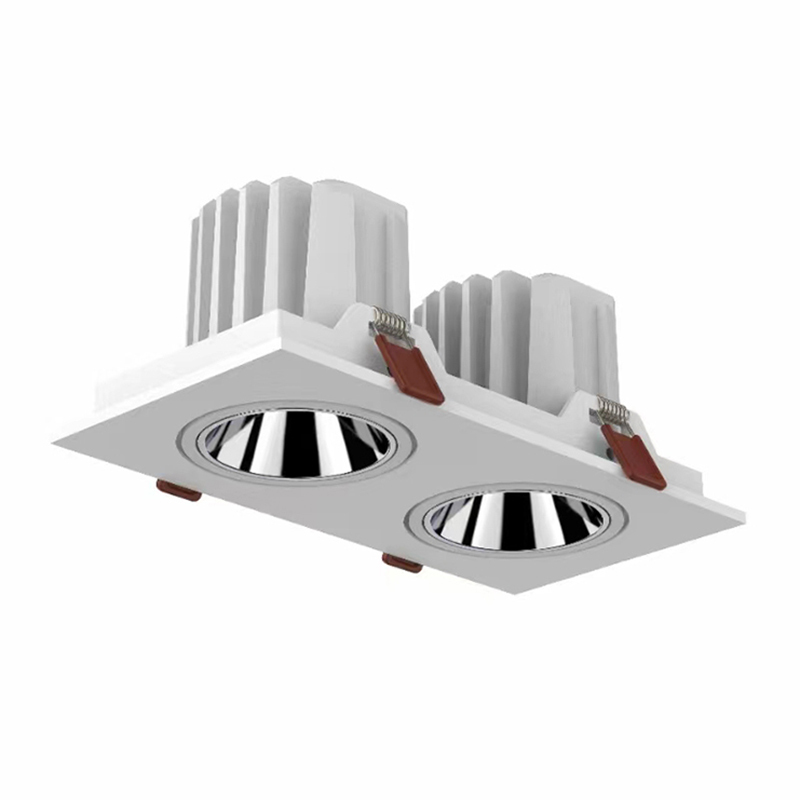

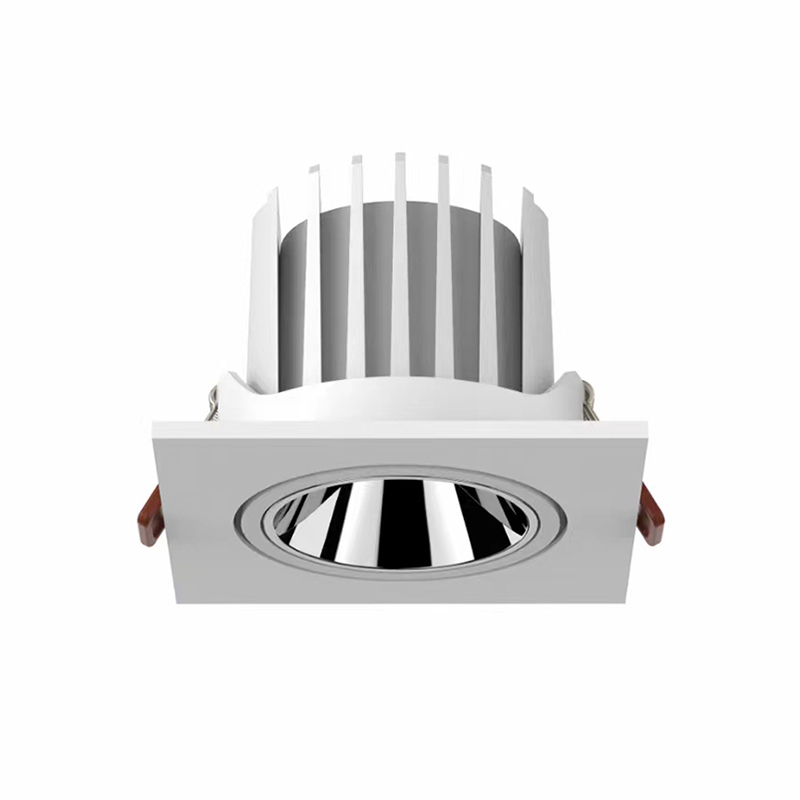

| Code | TS-DO12WUS | TS-DO12x2WUS |
|---|---|---|
| Rated Power | 12W | 12*2W |
| Cut-Out | 75*75MM | 75*160MM |
| Input Current | 55mA@220V | 109mA@220V |
| Lumens | 1200lm +/-5% | 2400lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | 85*85*60MM | 85*169*60MM |
| Products Name | LED Downlights COB Dimmable |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Reflector Color | Matte Black/ Matte White / Matte Silver/ Gun Black / Golden |
| Materials | Aluminium Body + Lens / PC cover |
| IP Rate | IP44 |
| Add Honeycomb | Not Available |
| Anti glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud / Eaglerise / Kegu / Philips / Osram |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W (COB) |
| COB chip Brand | Bridgelux / CREE / Philips / Osram COB / Epistar SMD |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
