TS-DO2535WM
Welcome to the forefront of modern lighting solutions where innovation meets aesthetic elegance. Our factory specializes in manufacturing high-quality LED linear light fixtures available in versatile lengths of 4ft, 5ft, 6ft, and 8ft. Designed for both commercial and residential applications, these lights not only illuminate your space efficiently but also enhance its overall ambience. Let's delve deeper into the features, benefits, and unique selling points of our LED linear light fixtures.
 |
 |
 |
| Code | TS-L5075B12 | TS-L5075B15 | TS-L5075B18 | TS-L5075B20 | TS-L5075B24 |
|---|---|---|---|---|---|
| Rated Power | 36W | 45W | 54W | 60W | 72W |
| Length | 1200MM/4ft | 1500MM/5ft | 1800MM/6ft | 2000MM/6.5ft | 2400MM/8ft |
| Function | Linkable | Linkable | Linkable | Linkable | Linkable |
| Efficiency | 100lm/W | 100lm/W | 100lm/W | 100lm/W | 100lm/W |
| Lumens | 3600lm+/-5% | 4500lm+/-5% | 5400lm+/-5% | 6000lm+/-5% | 7200lm+/-5% |
| Beam angle | 100° | 100° | 100° | 100° | 100° |
| Cover | Milky/ Prism | Milky/ Prism | Milky/ Prism | Milky/ Prism | Milky/ Prism |
| UGR | <19 | <19 | <19 | <19 | <19 |

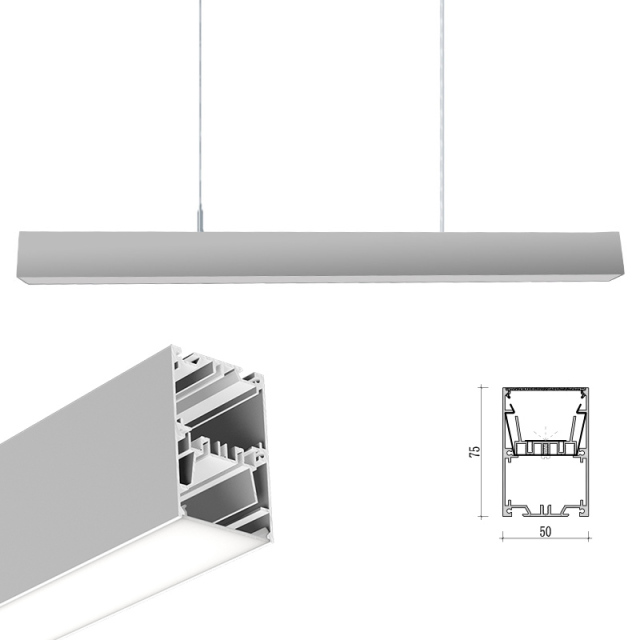

| Size | 5x7.5x120CM | 5x7.5x150CM | 5x7.5x180CM | 5x7.5x200CM | 5x7.5x240CM |
| Mounting type | Suspended /Surface | Suspended /Surface | Suspended /Surface | Suspended /Surface | Suspended /Surface |
| Products Name | LED Linear Lights Fixture Factory with Versatile Lengths |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Diffuser | Prismatic diffuser / Milky Diffuser |
| Materials | Aluminum Body + Prismatic diffuser |
| Linkable | YES (Max 20pcs 1.5M linkable ) |
| Beam Angle | 100° |
| IP Rate | IP44 |
| Anti-glare | Yes |
| UGR | <19/22 |
| Flicker Free | Yes |
| Installation | Suspended, Surface mounted, Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Philips / Osram |
| Dimmable | Non-DIM / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Colour Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100-110lm/W |
| Chip Brand | Bridgelux, Epistar, Lumileds Or Other |
| Color Render Index | Ra>80 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
