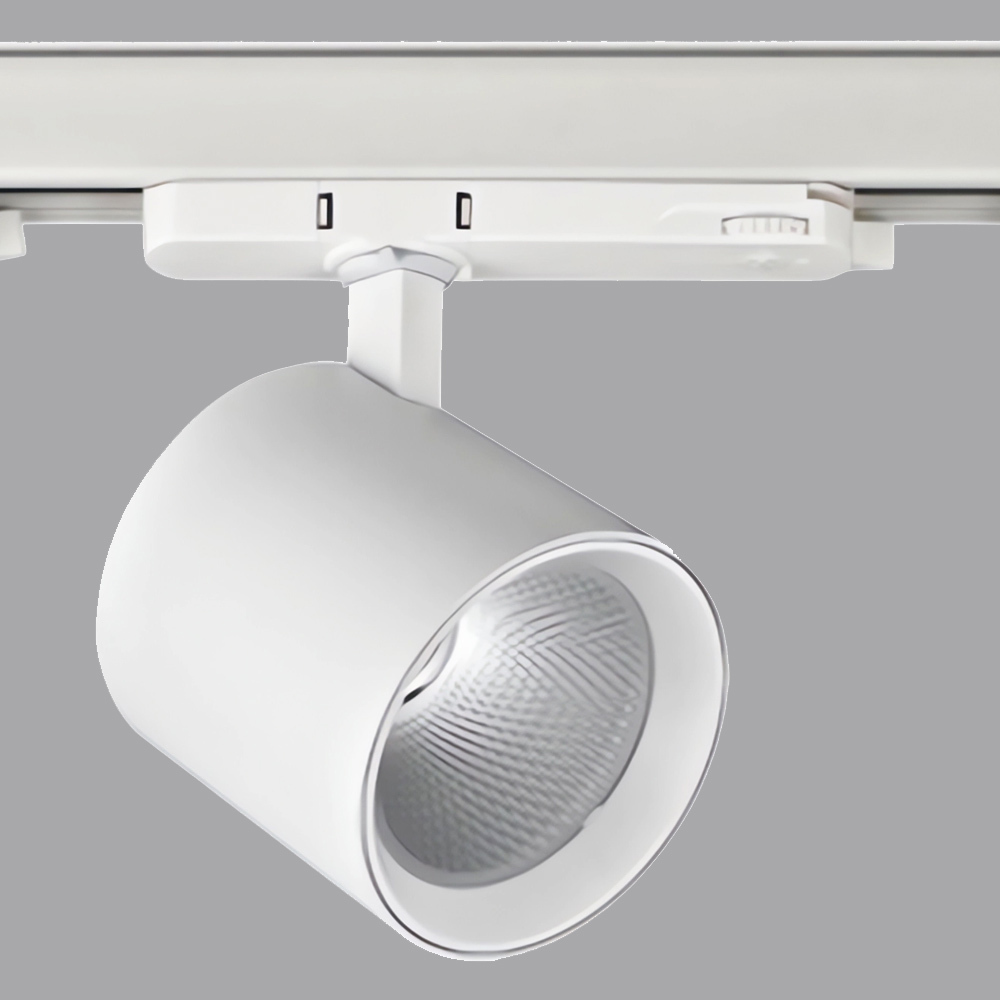

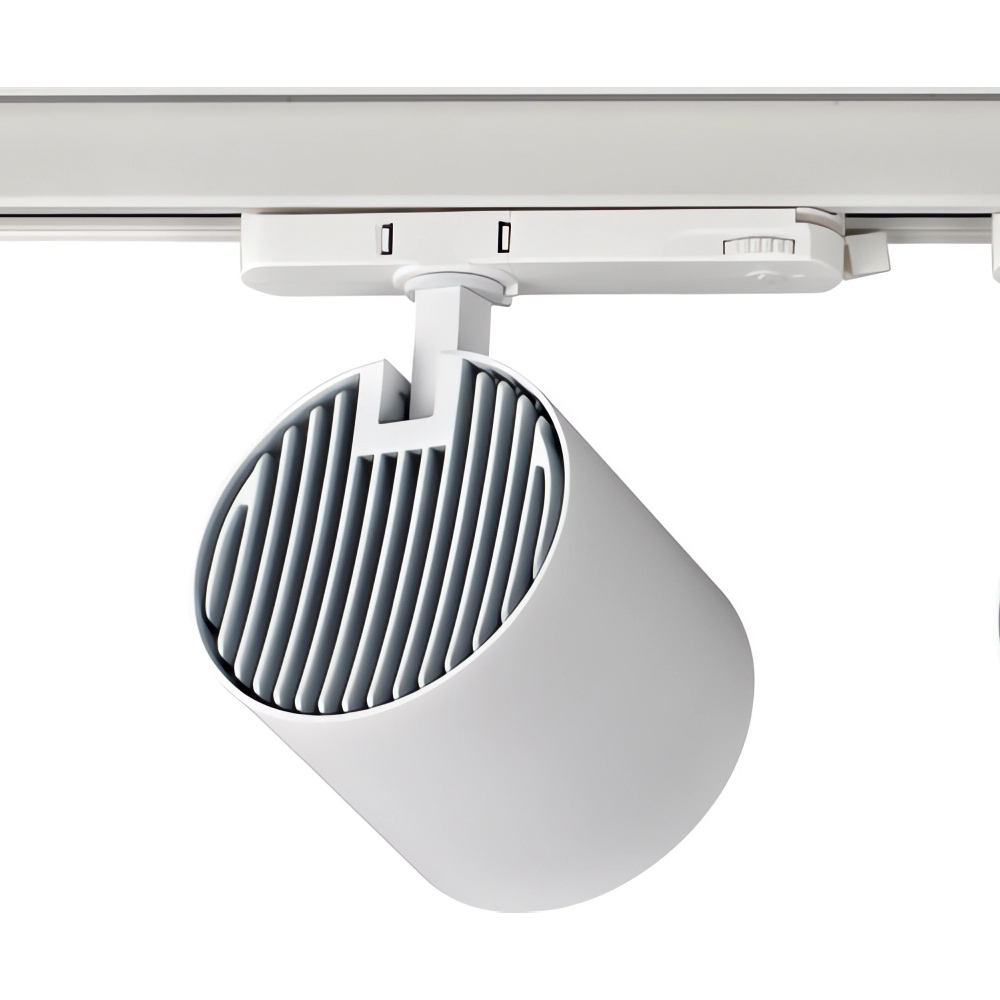

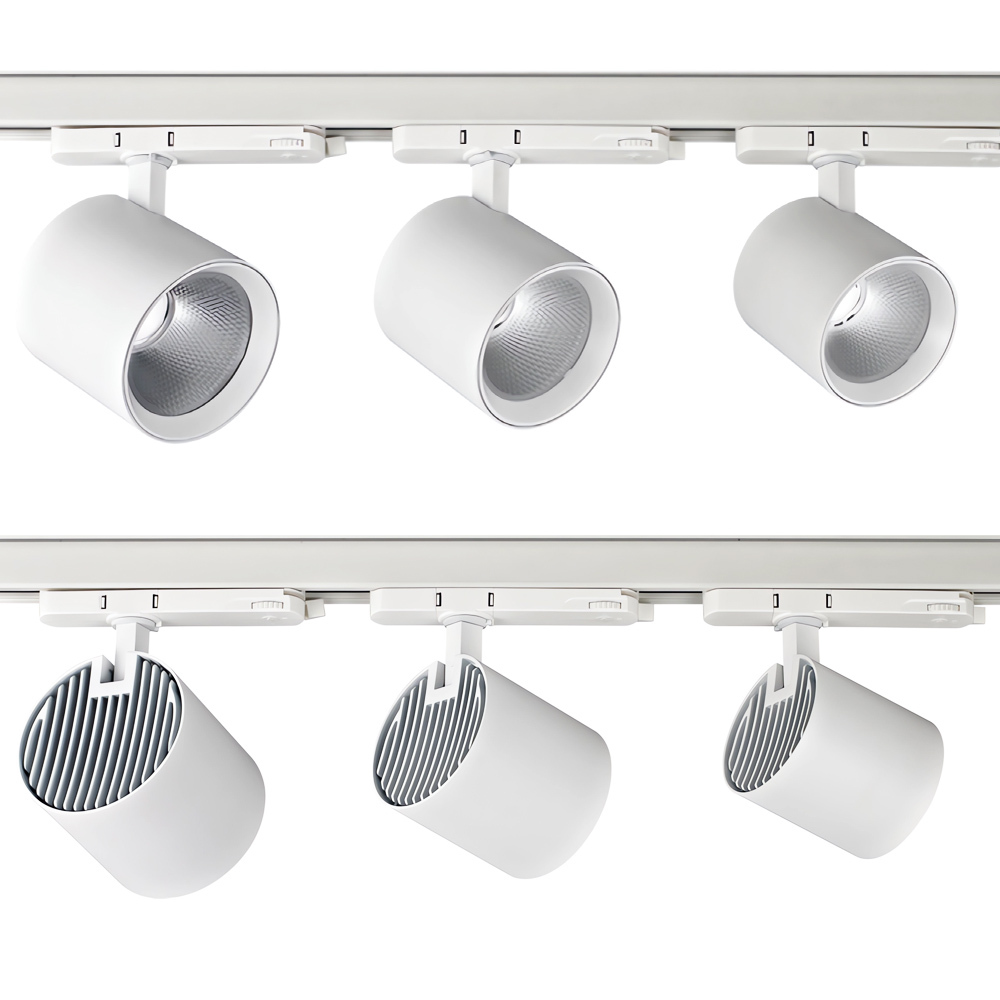

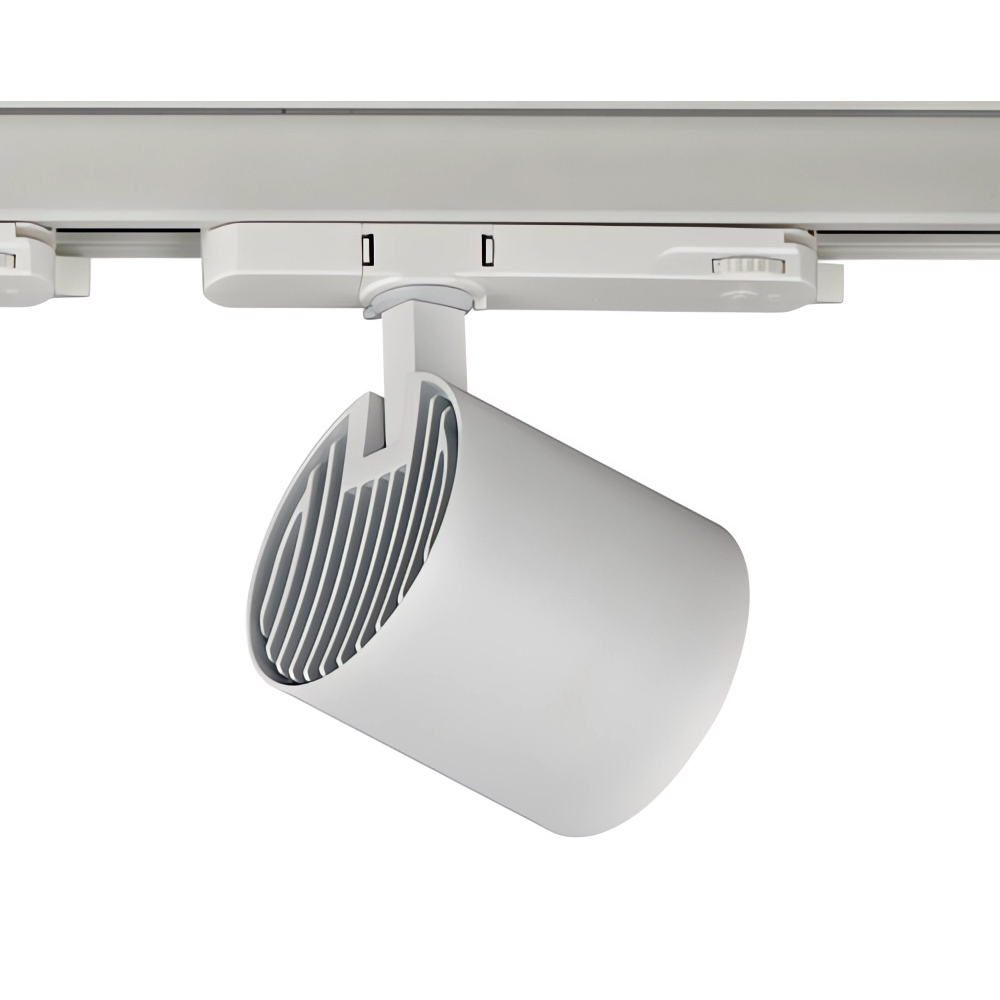

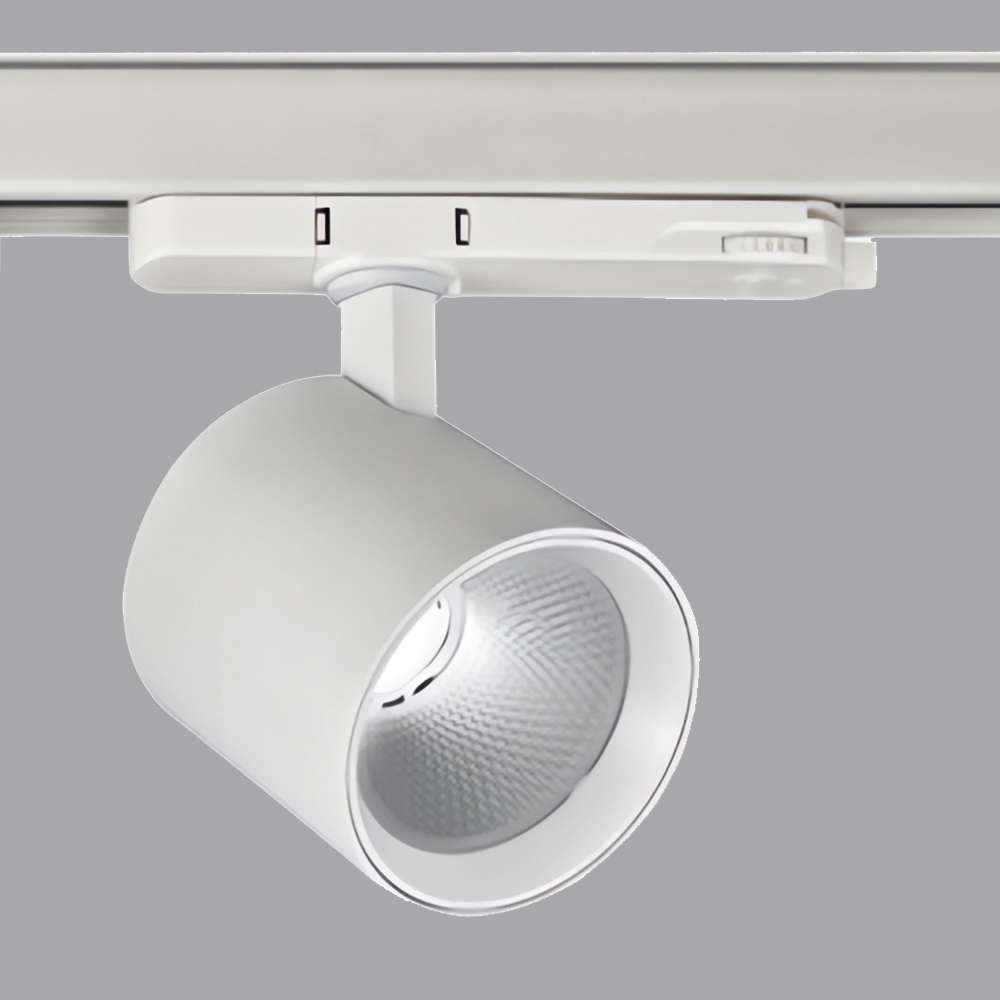

TS-TR1020WO7
| Code | TS-TR20WF | TS-TR30WF | TS-TR36WF | TS-TR42WF |
|---|---|---|---|---|
| Rated Power | 20W | 30W | 36W | 42W |
| Input Current | 91mA@220V | 136mA@220V | 164mA@220V | 191mA@220V |
| Lumens | 2000lm +/-5% | 3000lm +/-5% | 3600lm +/-5% | 4200lm +/-5% |
| Beam Angle | 15°, 24°, 36°, 60° | 15°, 24°, 36°, 60° | 15°, 24°, 36°, 60° | 15°, 24°, 36°, 60° |
| Tube Size | D90xH90MM | D90xH90MM | D100xH100MM | D110xH106MM |
| Products Name | |
|---|---|
| Track System | 3-CIRCUITS/ 1-CIRCUIT |
| Adaptor Base | 2 Phase (2 wires / 3 wires ), 3 phase ( 4 wires ) |
| Body Color | Sandy White / Sandy Black |
| Materials | Aluminium Body + Reflector |
| Beam Angle | 15°, 24°, 36°, 60° |
| IP Rate | IP20 |
| Add Honeycomb | Available |
| Anti Glare | Yes |
| Flicker Free | Yes |
| Tuya Smart | Zigbee / Bluetooth / Customized Available |
| CCT changeable | Customized Available (3000/4000/6000K changeable) |
| Installation | On Track system OR Ceiling Directly With Canopy base |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud / Eaglerise / Philips / Osram / Allooking |
| Dimmable | Non-DIM / TRIAC / 0-10V |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W |
| COB Brand | Bridgelux / CREE / Philips |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
Product Advantages
TopSun Lighting is a leading manufacturer and supplier of innovative lighting solutions, specializing in energy-efficient LED lighting for commercial, industrial, and residential applications. With years of expertise in lighting technology, we are committed to delivering high-quality, eco-friendly, and cost-effective lighting products that meet the highest industry standards.
TopSun Lighting is a trusted LED lighting manufacturer offering a wide range of energy-efficient lighting products for commercial, industrial, and residential applications. Our commitment to quality and sustainability makes us a leading choice in the industry.
We ensure quality through:
We offer a variety of LED lighting solutions, including:
Need expert lighting solutions? Contact us today to get a free consultation and the best pricing!
