High-Efficiency Linear LED Track Lights for Supermarkets | 30W-60W | Tunable CCT

Products Information

Electrical Data

Lighting Source Data

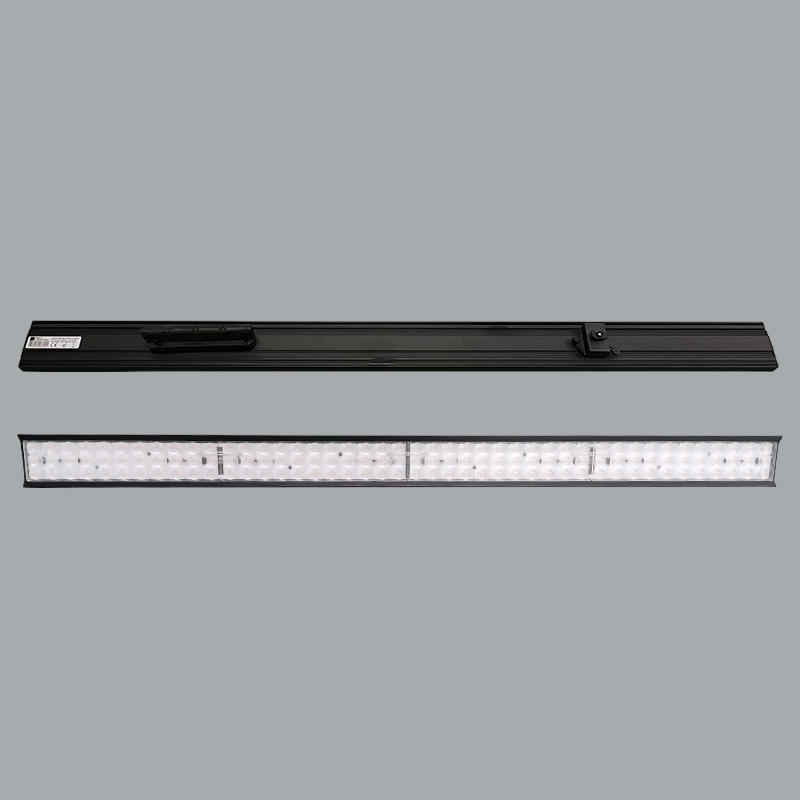

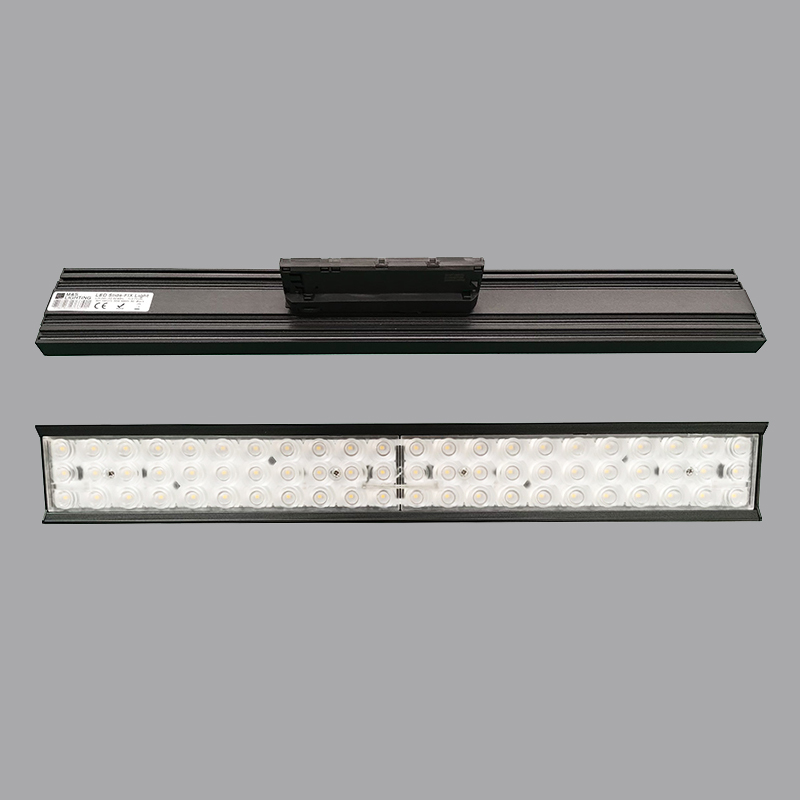

Elevate retail environments with our advanced Linear LED Track Lighting system, engineered specifically for supermarket applications. Offering 30W, 40W, 50W, and 60W configurations in 2ft (600mm) and 4ft (1200mm) lengths, this solution combines energy efficiency, adaptive lighting control, and superior optical performance to transform commercial spaces.

Core Technical Specifications

| Parameter | Single Color Temperature (TS-TRWO3) | 3-Changeable CCT (TS-TRWO3CCT) |
|------------------------|---------------------------------------|----------------------------------|
| Rated Power | 30W/40W/50W/60W | 30W/40W/50W/60W |
| Lumens (±5%) | 3600lm | 3,300lm–6,600lm |
| Color Temperature | Fixed: WW/NW/CW | Tunable: 3000K/4000K/5000K |
| Beam Angles | 15° (Asymmetric), 20° (Double), 30°/60°/90° | Same as Single Color |
| Track Adaptor | 2-Phase (2/3 wires), 3-Phase (4 wires) | Identical compatibility |
| Dimmability | Non-Dim, TRIAC, 0-10V, DALI, Push Dim | Full dimming protocol support |

Engineered for Retail Excellence

1. Adaptive Lighting Control

• Multi-Protocol Dimming: Seamlessly integrates with TRIAC, 0-10V, DALI, and Push Dim systems for dynamic brightness adjustments.
• CCT Flexibility: 3-changeable models allow real-time switching between Warm White (3000K), White (4000K), and Cool White (5000K) to match product displays or store ambiance.

1. Optical Precision

• Anti-Glare Optics: PMMA lenses with specialized beam angles (15° asymmetric, 20° double-asymmetric) eliminate eye strain while highlighting merchandise.
• High Efficiency: 120 lm/W output with Ra>80/90 CRI ensures true color rendering for fresh produce and packaged goods.

1. Robust Construction

• IP20-Rated Housing: Sandy White/Black aluminum bodies ensure heat dissipation and longevity.
• Premium Components: Drivers from Kegu/Lifud/Eaglerise and COBs from Bridgelux/Sanan/Epistar guarantee reliability.

1. Certified Safety
   Compliant with CE-EMC, CE-LVD, RoHS, FCC, and C-tick standards. Features flicker-free operation (<5 SDCM) and ≤15% THD.

• Supermarket Aisles: Wide 90° beams for general illumination; narrow 15°–30° spots for shelf highlighting.
• Checkout Zones: High-CRI neutral white (4000K) enhances transaction clarity.
• Perishables Section: Tunable CCT models adapt to meat (3000K), dairy (4000K), or seafood (5000K) displays.
• Retail Galleries: Compatible with surface, track, or suspension mounting (2/3/4-wire systems).

Value Proposition

• Energy Savings: 30W–60W options reduce operational costs versus traditional lighting. Simplified Installation: Universal track adaptors (2-phase/3-phase) retrofit existing infrastructure.
• Smart-Ready: DALI/Push Dim support enables IoT integration for automated lighting scenes.
