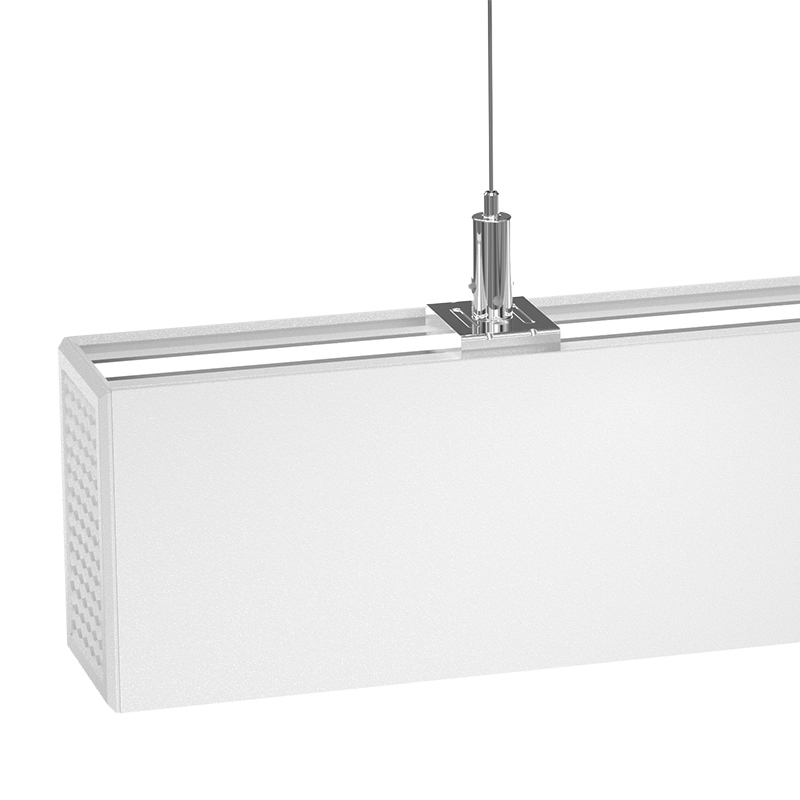

Linkable LED Linear Pendant Light with Philips Driver - Elegant Lighting for Modern Spaces

No.TS-L3880/5080/6890

Discover the Linkable LED Linear Pendant Light with Philips Driver, a cutting-edge lighting solution combining elegance, efficiency, and flexibility. Perfect for residential and commercial spaces, this pendant light offers superior lighting performance, energy savings, and easy installation. Illuminate your space with sophistication and style.

$ *****Login to see price

Get The Latest Quote

Add to Quote List View Quote List

Description

Linkable LED Linear Pendant Light with Philips Driver: Illuminating Spaces with Elegance and Efficiency

Introduction

In the realm of modern lighting solutions, the Linkable LED Linear Pendant Light with Philips Driver stands out as a beacon of innovation, aesthetic appeal, and energy efficiency. Designed to seamlessly integrate into diverse interior designs, this pendant light not only enhances the visual appeal of any space but also ensures superior lighting performance. Let's delve deeper into the features, benefits, and unique selling points of this remarkable product.

Products Information

1. 3880 model

Code	TS-L3880A12	TS-L3880A15	TS-L3880A18	TS-L3880A20	TS-L3880A24
Down Power	36W	45W	54W	60W	72W
Up Power	12W	15W	18W	20W	24W
Length	1200MM/4ft	1500MM/5ft	1800MM/6ft	2000MM/6.5ft	2400MM/8ft
Function	Linkable	Linkable	Linkable	Linkable	Linkable
Efficiency	100-120lm/W	100-120lm/W	100-120lm/W	100-120lm/W	100-120lm/W
Lumens	4320lm+/-5%	5400lm+/-5%	6480lm+/-5%	7200lm+/-5%	8640lm+/-5%
Beam angle	100°	100°	100°	100°	100°
Cover	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism
UGR	<14/<16/<19	<14/<16/<19	<14/<16/<19	<14/<16/<19	<14/<16/<19

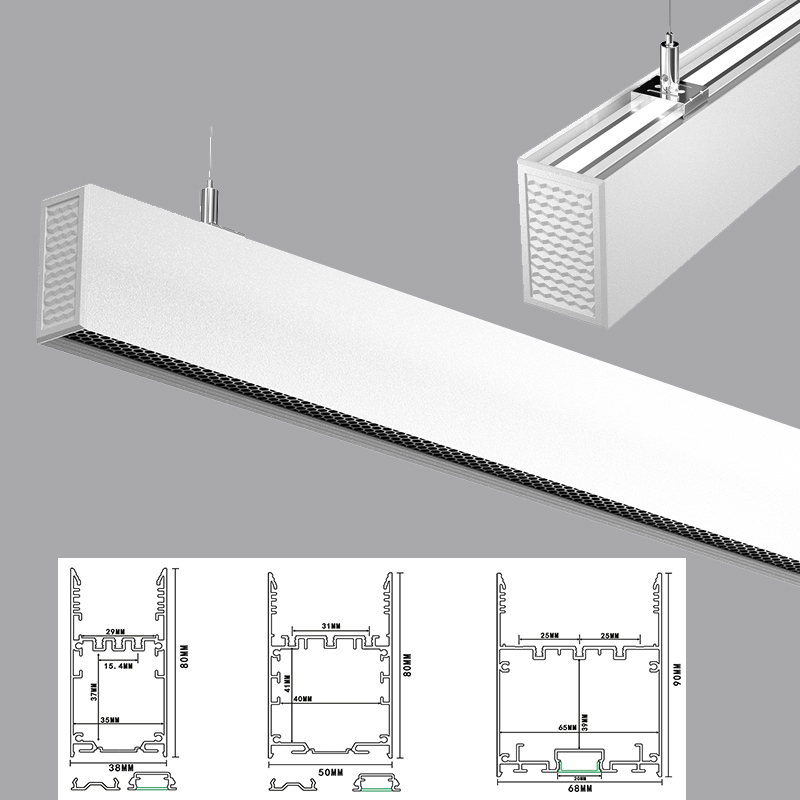

Size	3.8x8x120CM	3.8x8x150CM	3.8x8x180CM	3.8x8x200CM	3.8x8x240CM
Mounting type	Suspended /Surface	Suspended /Surface	Suspended /Surface	Suspended /Surface	Suspended /Surface

2. 5080 model

Code	TS-L5080A12	TS-L5080A15	TS-L5080A18	TS-L5080A20	TS-L5080A24
Down Power	48W	60W	72W	80W	96W
Up Power	12W	15W	18W	20W	24W
Length	1200MM/4ft	1500MM/5ft	1800MM/6ft	2000MM/6.5ft	2400MM/8ft
Function	Linkable	Linkable	Linkable	Linkable	Linkable
Efficiency	100-120lm/W	100-120lm/W	100-120lm/W	100-120lm/W	100-120lm/W
Lumens	5760lm+/-5%	7200lm+/-5%	8640lm+/-5%	9600lm+/-5%	11520lm+/-5%
Beam angle	100°	100°	100°	100°	100°
Cover	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism
UGR	<14/<16/<19	<14/<16/<19	<14/<16/<19	<14/<16/<19	<14/<16/<19
Size	5x8x120CM	5x8x150CM	5x8x180CM	5x8x200CM	5x8x240CM
Mounting type	Suspended /Surface	Suspended /Surface	Suspended /Surface	Suspended /Surface	Suspended /Surface

3. 6890 model

Code	TS-L6890A12	TS-L6890A15	TS-L6890A18	TS-L6890A20	TS-L6890A24
Down Power	48W	60W	72W	80W	96W
Up Power	12W	15W	18W	20W	24W
Length	1200MM/4ft	1500MM/5ft	1800MM/6ft	2000MM/6.5ft	2400MM/8ft
Function	Linkable	Linkable	Linkable	Linkable	Linkable
Efficiency	100-120lm/W	100-120lm/W	100-120lm/W	100-120lm/W	100-120lm/W
Lumens	5760lm+/-5%	7200lm+/-5%	8640lm+/-5%	9600lm+/-5%	11520lm+/-5%
Beam angle	100°	100°	100°	100°	100°
Cover	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism	Strip/Honey-comb/Prism
UGR	<14/<16/<19	<14/<16/<19	<14/<16/<19	<14/<16/<19	<14/<16/<19
Size	6.8x9x120CM	6.8x9x150CM	6.8x9x180CM	6.8x9x200CM	6.8x9x240CM
Mounting type	Suspended /Surface	Suspended /Surface	Suspended /Surface	Suspended /Surface	Suspended /Surface

Common Data

Products Name	Linkable LED Linear Pendant Light with Philips Driver
Body Color	Sandy White / Sandy Black / Gray

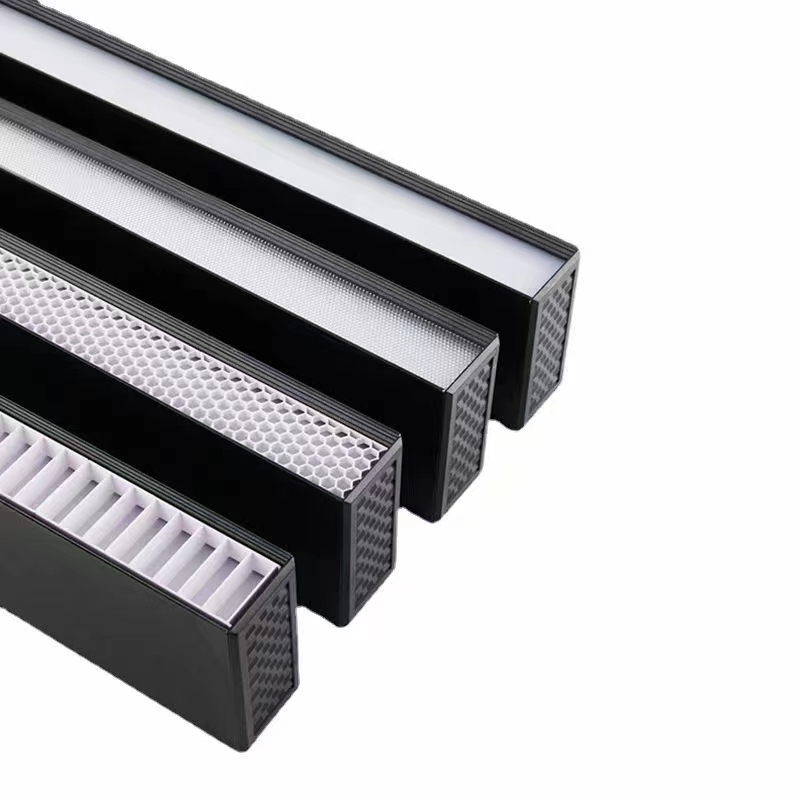

Diffuser	Strip lampshade / Honey Comb / Prismatic diffuser
Materials	Aluminum Body + Prismatic diffuser
Linkable	YES (Max 15pcs 1.5M linkable )
Beam Angle	100°
IP Rate	IP44
Anti-glare	Yes
UGR	<19/22
Flicker Free	Yes
Installation	Suspended, Surface mounted Type
Certificates	CE-EMC, CE-LVD, RoHS, FCC, C-tick

Electrical Data

Working Voltage	220-240VAC / 100-277VAC
Frequency	50/60Hz
Power Factor(PF)	>0.9
Driver Brand	Philips / Osram
Dimmable	Non-DIM / 0-10V / Dali / Push Dimming
Total Harmonic Distortion(THD)	≤15%

Lighting Source Data

Colour Temperature	27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White
Lighting Efficiency	100-110lm/W
Chip Brand	Bridgelux, Epistar, Lumileds Or Other
Color Render Index	Ra>80
SDCM	<5
Anti Glare	Yes, (UGR<19)
Flicker Free	Yes

Application

Ambient Humidity	10%~90%
Ambient Temp.	-20 ~ 50℃
Storage Temp.	-30 ~ 80℃
Working Temp.	< 60℃ (Ta=25℃)
Life Span	>50000 Hours (LM80)
Warranty	3 Years
