TS-DO2535WM
Introduction
In the realm of contemporary architectural lighting, the Suspension UP and Down Linear Lighting Fixture stands as a testament to innovative design and functional elegance. This state-of-the-art lighting solution is engineered to illuminate spaces with a unique blend of aesthetic appeal and practical versatility, making it an ideal choice for a wide array of applications. From high-end retail outlets to sophisticated corporate offices, this fixture promises to elevate the visual experience of any environment.
 |
 |
| Code | TS-L3676A12 | TS-L3676A15 | TS-L3676A18 | TS-L3676A20 | TS-L3676A24 |
|---|---|---|---|---|---|
| Down Power | 36W | 45W | 54W | 60W | 72W |
| Up Power | 12W | 15W | 18W | 20W | 24W |
| Length | 1200MM/4ft | 1500MM/5ft | 1800MM/6ft | 2000MM/6.5ft | 2400MM/8ft |
| Function | Linkable | Linkable | Linkable | Linkable | Linkable |
| Efficiency | 100-120lm/W | 100-120lm/W | 100-120lm/W | 100-120lm/W | 100-120lm/W |
| Lumens | 4320lm+/-5% | 5400lm+/-5% | 6480lm+/-5% | 7200lm+/-5% | 8640lm+/-5% |
| Beam angle | 15°,24°,36°,48° | 15°,24°,36°,48° | 15°,24°,36°,48° | 15°,24°,36°,48° | 15°,24°,36°,48° |
| Cover | Lens/Reflector | Lens/Reflector | Lens/Reflector | Lens/Reflector | Lens/Reflector |
| UGR | <14/<16 | <14/<16 | <14/<16 | <14/<16 | <14/<16 |
| Size | 3.6x7.6x120CM | 3.6x7.6x150CM | 3.6x7.6x180CM | 3.6x7.6x200CM | 3.6x7.6x240CM |
| Mounting type | Suspended /Surface | Suspended /Surface | Suspended /Surface | Suspended /Surface | Suspended /Surface |
 |
 |
| Code | TS-L4575A12 | TS-L4575A15 | TS-L4575A18 | TS-L4575A20 | TS-L4575A24 |
|---|---|---|---|---|---|
| Down Power | 48W | 60W | 72W | 80W | 96W |
| Up Power | 12W | 15W | 18W | 20W | 24W |
| Length | 1200MM/4ft | 1500MM/5ft | 1800MM/6ft | 2000MM/6.5ft | 2400MM/8ft |
| Function | Linkable | Linkable | Linkable | Linkable | Linkable |
| Efficiency | 100-120lm/W | 100-120lm/W | 100-120lm/W | 100-120lm/W | 100-120lm/W |
| Lumens | 5760lm+/-5% | 7200lm+/-5% | 8640lm+/-5% | 9600lm+/-5% | 11520lm+/-5% |
| Beam angle | 15°,24°,36°,48° | 15°,24°,36°,48° | 15°,24°,36°,48° | 15°,24°,36°,48° | 15°,24°,36°,48° |
| Cover | Lens/Reflector | Lens/Reflector | Lens/Reflector | Lens/Reflector | Lens/Reflector |
| UGR | <14/<16 | <14/<16 | <14/<16 | <14/<16 | <14/<16 |

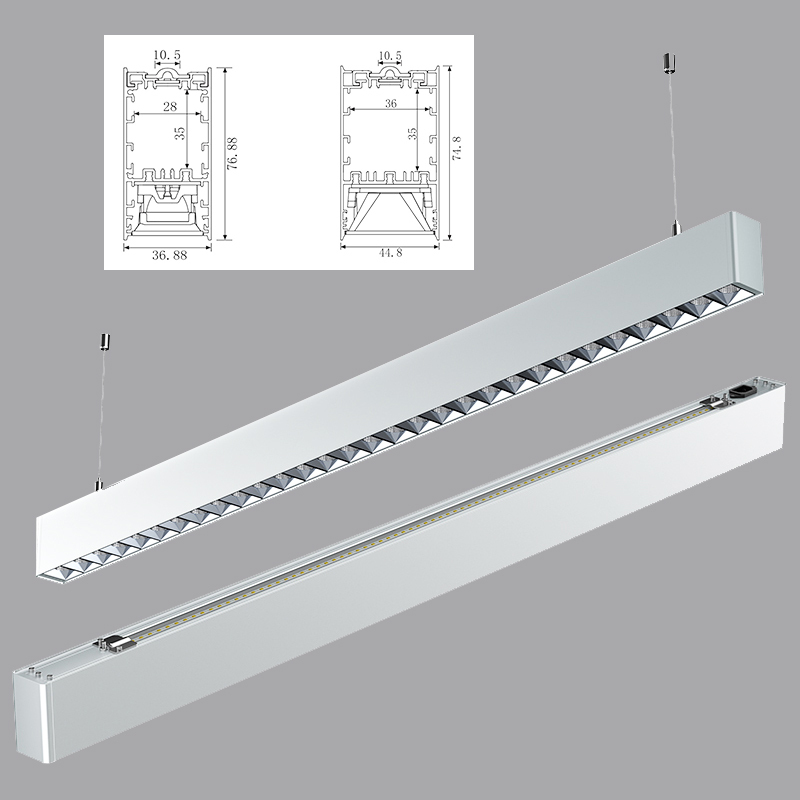

| Size | 4.5x7.5x120CM | 4.5x7.5x150CM | 4.5x7.5x180CM | 4.5x7.5x200CM | 4.5x7.5x240CM |
| Mounting type | Suspended /Surface | Suspended /Surface | Suspended /Surface | Suspended /Surface | Suspended /Surface |
| Products Name | suspension UP and Down linear lighting fixture |
|---|---|
| Body Color | Sandy White / Sandy Black / Gray |
| Diffuser | Lens / Reflector |
| Materials | Aluminum Body + Lens |
| Beam Angle | 15°,24°,36°,48° |
| IP Rate | IP44 |
| Anti-glare | Yes |
| UGR | <14/16 |
| Flicker Free | Yes |
| Installation | Suspended, Surface mounted Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Philips / Osram |
| Dimmable | Non-DIM / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Colour Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100-110lm/W |
| Chip Brand | Bridgelux, Epistar, Lumileds Or Other |
| Color Render Index | Ra>80 |
| SDCM | <5 |
| Anti Glare | Yes, (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
