TS-TR1020WO7

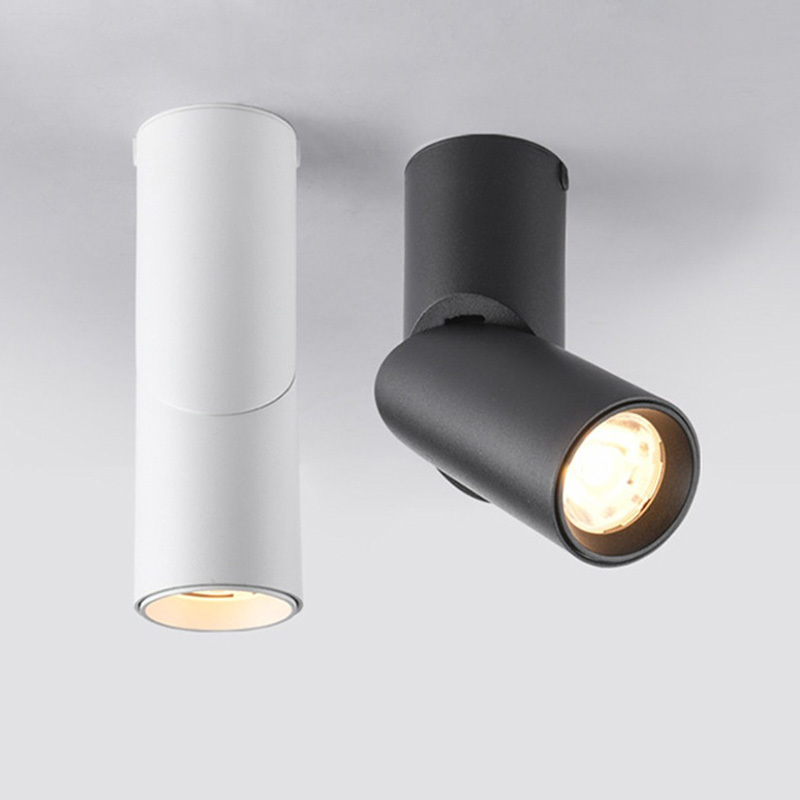

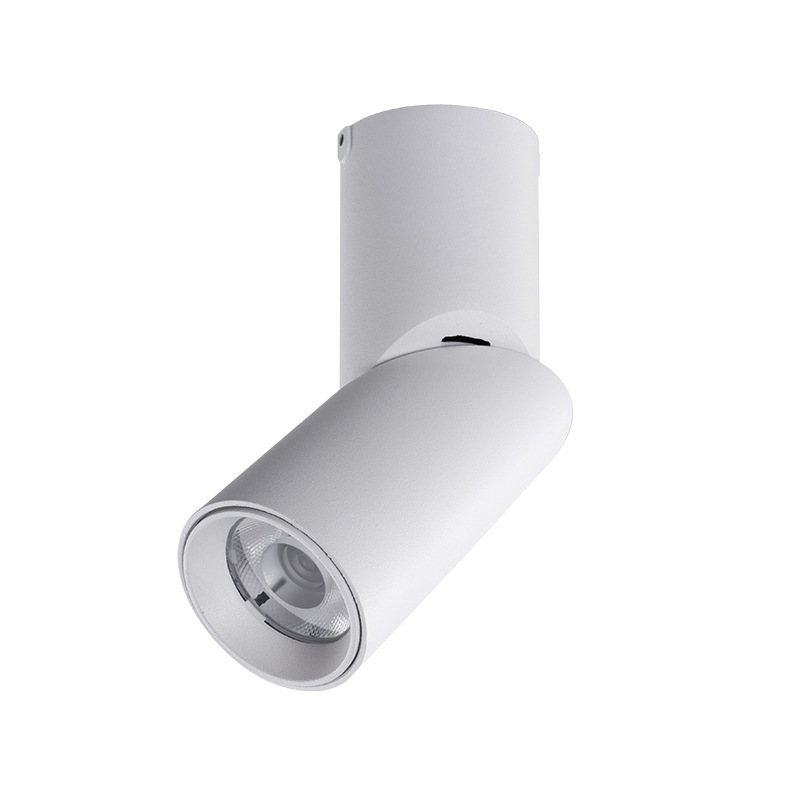

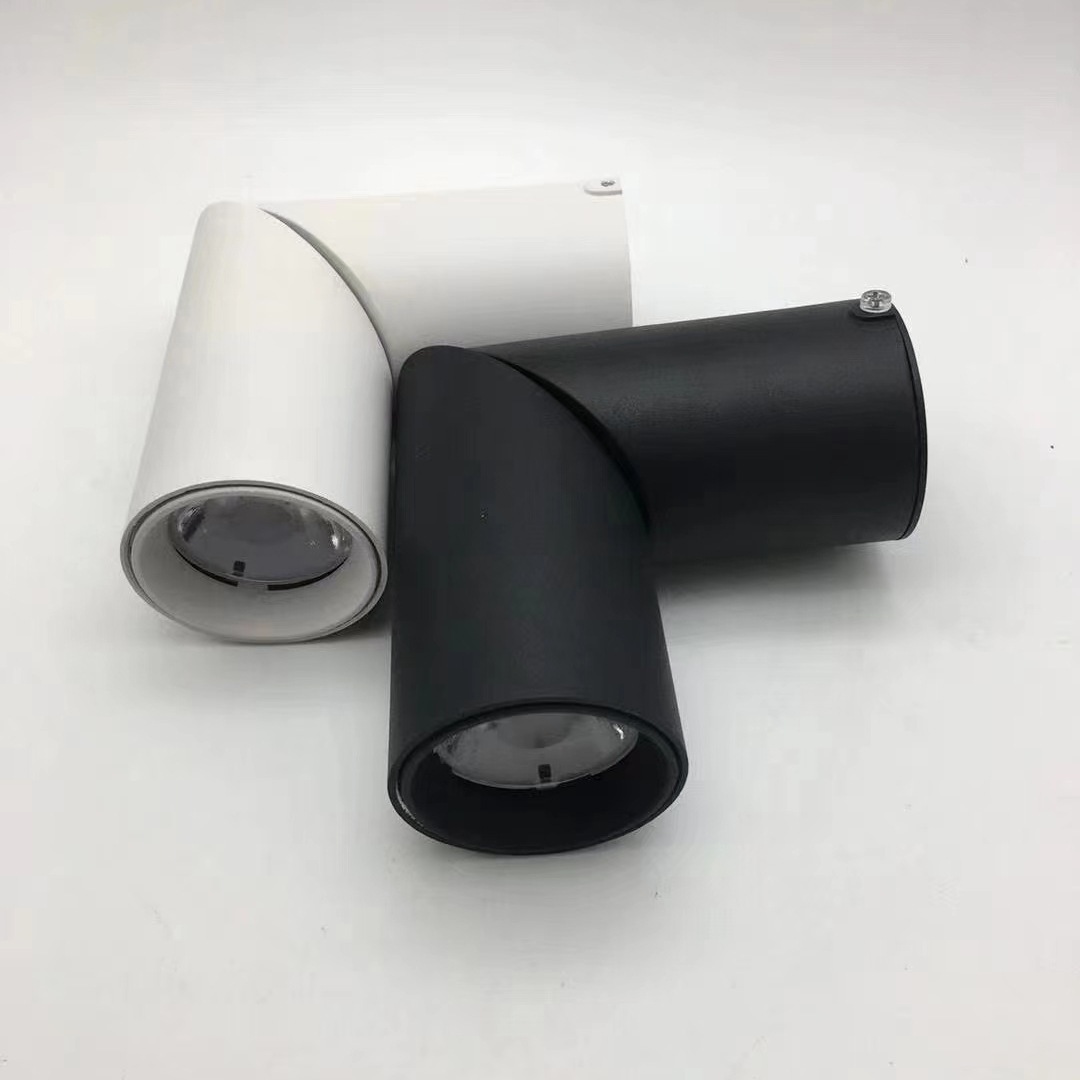

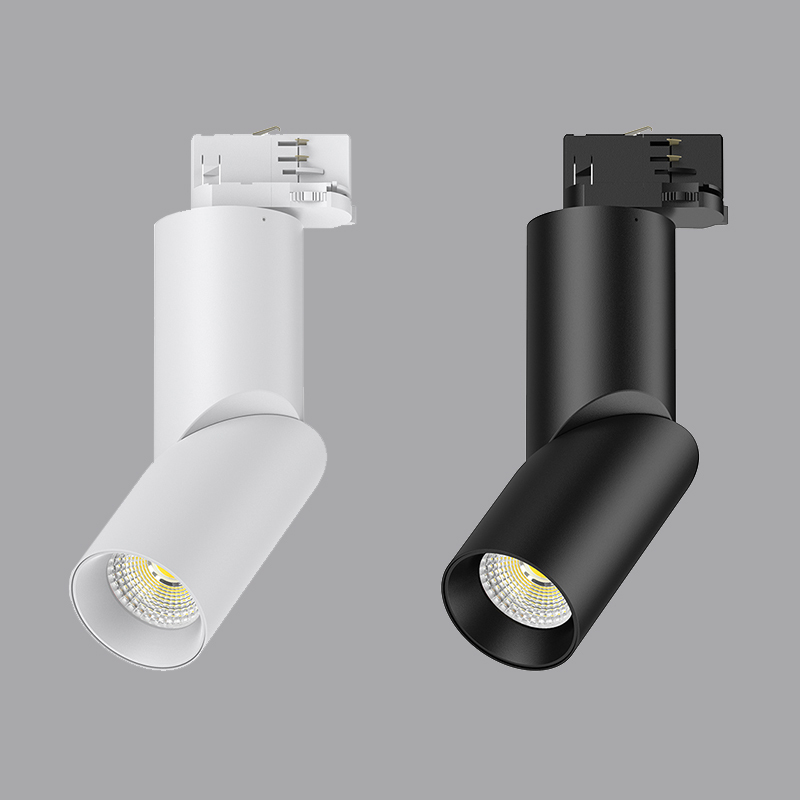

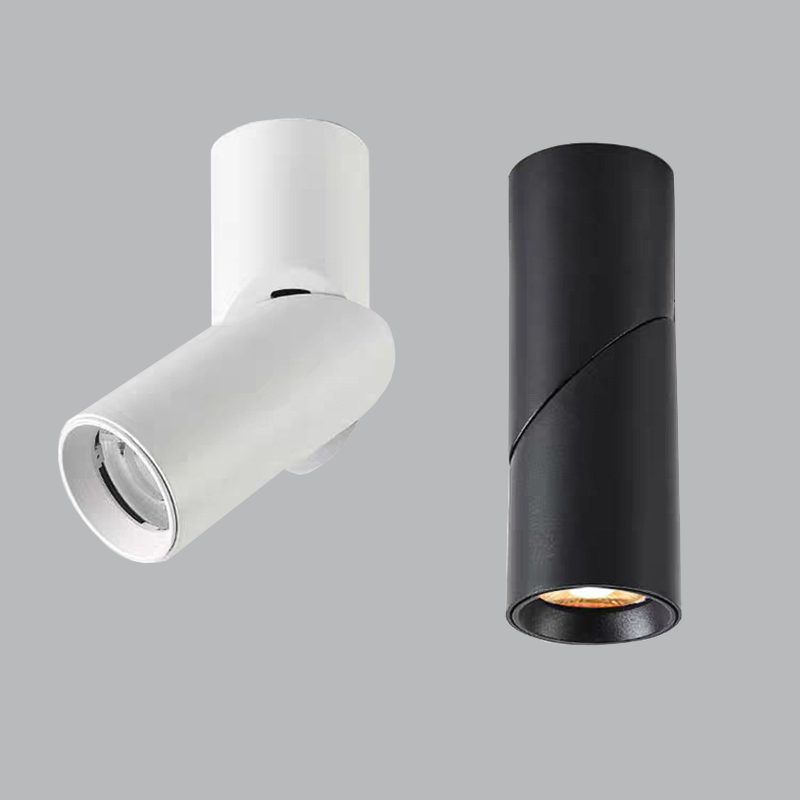

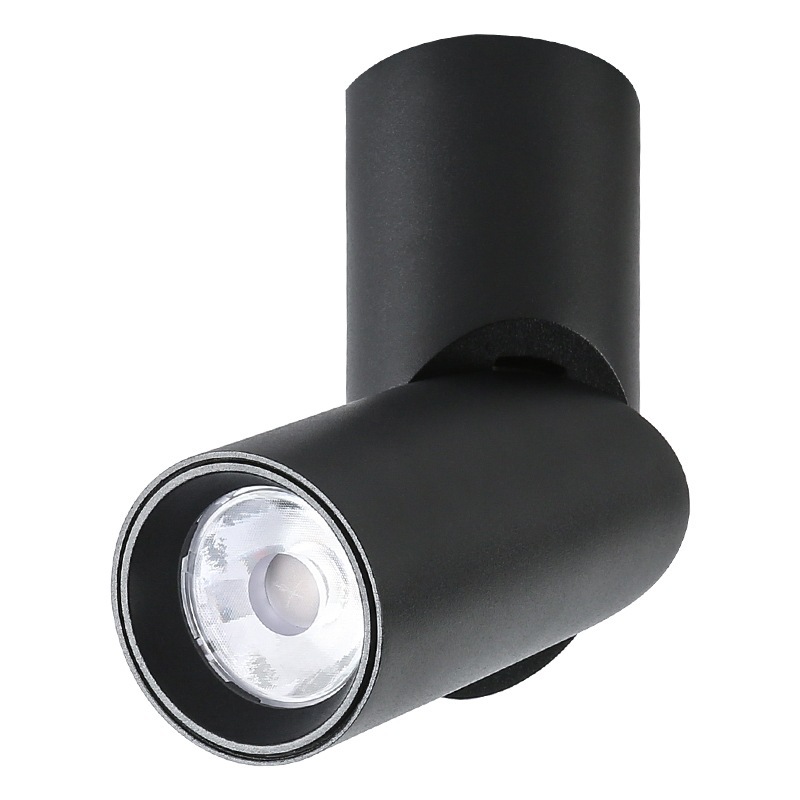

Wall mounted LED track light fixture 15W 20W
Wall-mounted LED track light fixtures offer directional illumination, ideal for highlighting specific areas or objects on walls. With energy-efficient LED technology and a sleek design, these fixtures are popular for their functionality and style in various settings such as retail spaces, galleries, homes, and offices.
 |
 |
| Code | TS-DO15WM3 | TS-DO20WM3 |
|---|---|---|
| Rated Power | 15W | 20W |

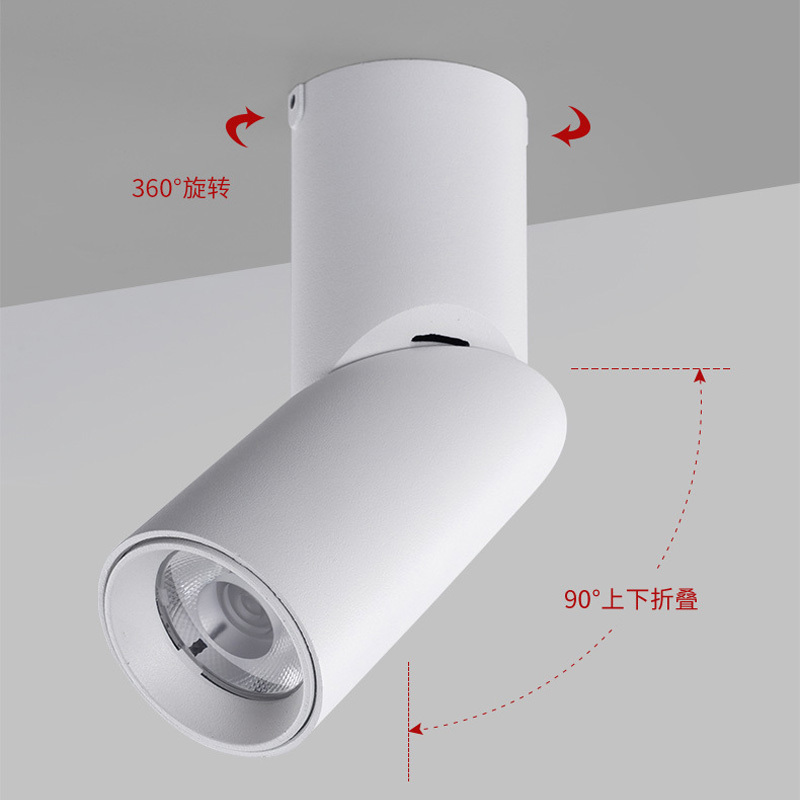

| Feature | 90 degrees rotatable | 90 degrees rotatable |
| Input Current | 68mA@220V | 91mA@220V |
| Lumens | 1500lm +/-5% | 2000lm +/-5% |
| Beam Angle | 15°, 24°, 36°, 60° | 24°, 36° |
| Size | D60xH182MM | D75xH205MM |
| Products Name | |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Materials | Aluminium Body + PMMA lens |
| Beam Angle | 24°, 36° |
| IP Rate | IP44 |
| Add Honeycomb | Available |
| Anti glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Surface Mounted Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequancy | 50/60Hz |
| Power Factor(PF) | >0.6 / >0.9 |
| Driver Brand | Lifud / Eaglerise / Kegu / Others |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Colour Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W (COB) |
| COB chip Brand | Bridgelux / CREE / Philips / Osram COB |
| Color Render Index | Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
