TS-DO2535WM

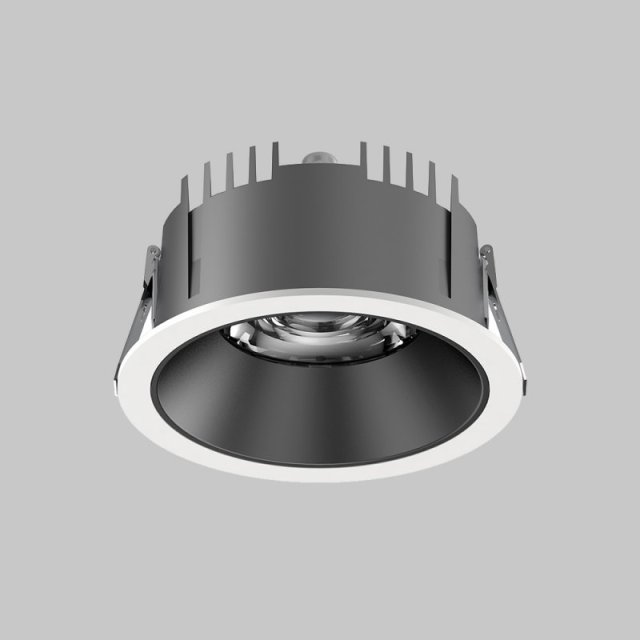

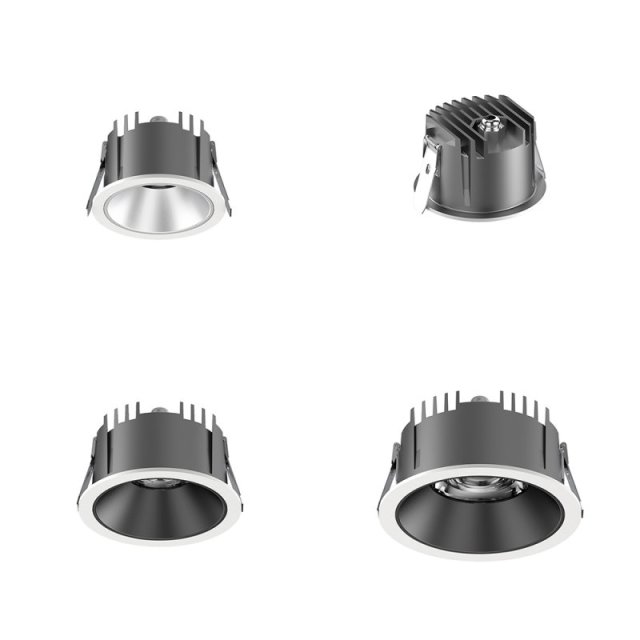

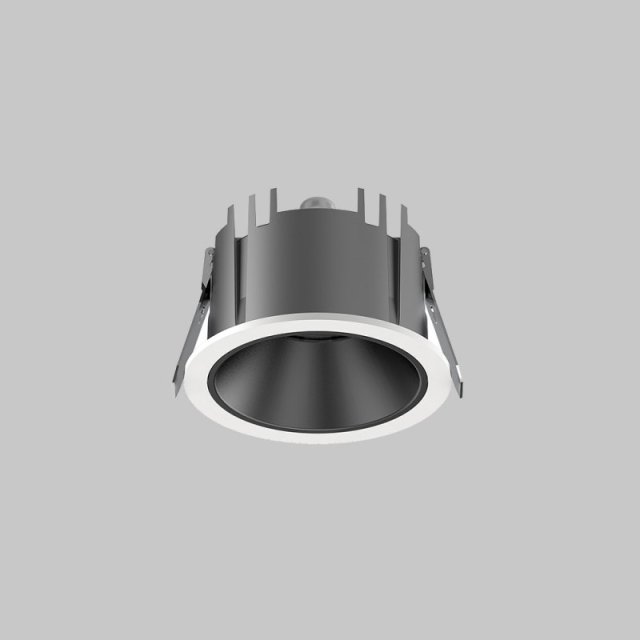

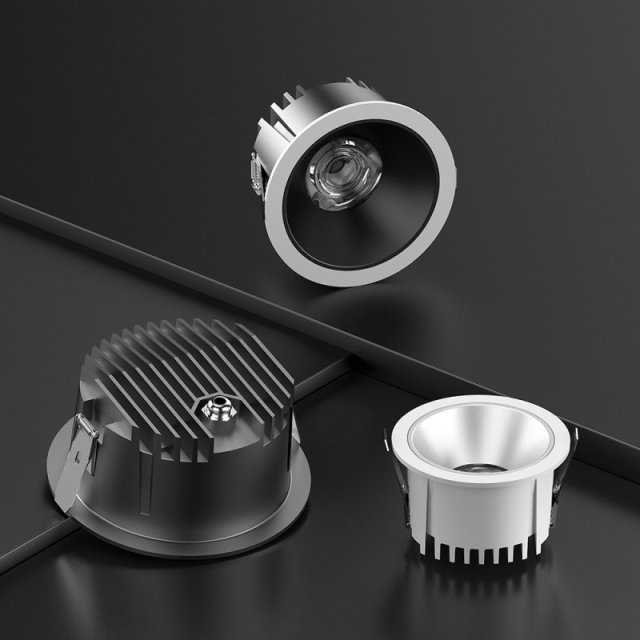

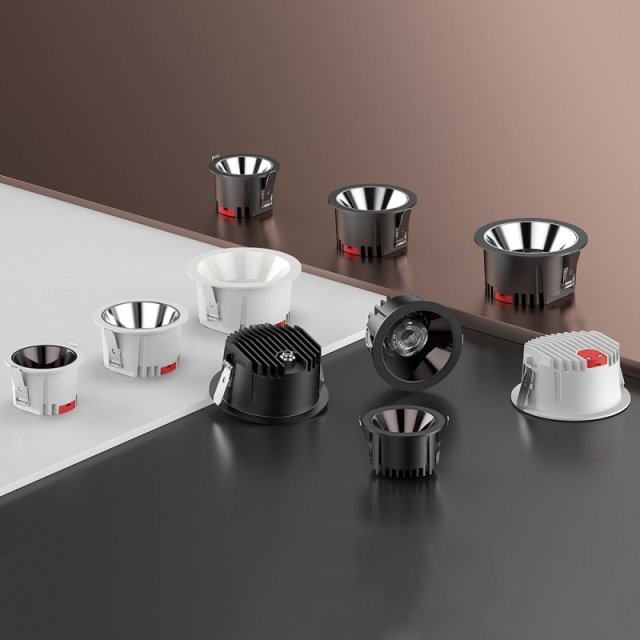

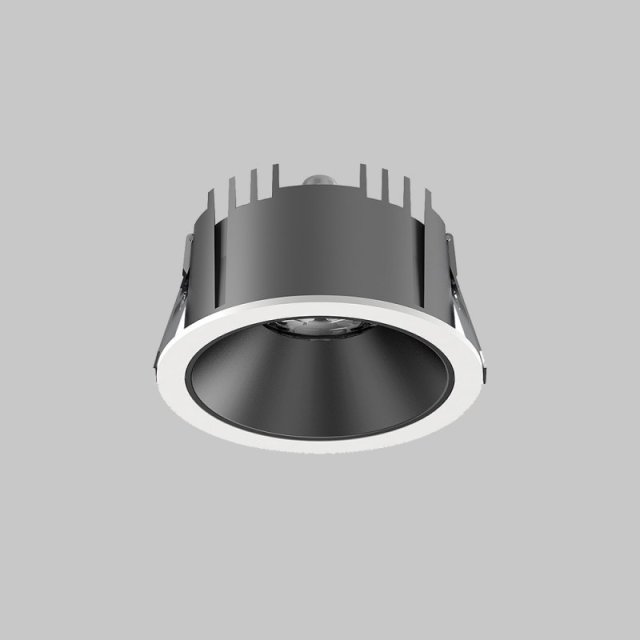

In the ever-evolving landscape of modern lighting design, finding a balance between aesthetics, energy efficiency, and functionality is paramount. Introducing the Waterproof Downlight COB with DALI Dimmable, a groundbreaking product that redefines the standards for indoor and outdoor lighting applications. Engineered to excel in demanding environments, this downlight combines the brilliance of COB (Chip On Board) LED technology with the flexibility of DALI (Digital Addressable Lighting Interface) dimming, offering a versatile and reliable solution for a wide range of settings.
 |
 |
 |
| Code | TS-DO12WPA | TS-DO15WPA | TS-DO25WPA |
|---|---|---|---|
| Rated Power | 12W | 15W | 25W |
| Cut-Out | D 75MM | D 95MM | D 115MM |
| Input Current | 55mA@220V | 68mA@220V | 113mA@220V |
| Lumens | 1200lm +/-5% | 1500lm +/-5% | 2500lm +/-5% |
| Beam Angle | 15°, 24°, 36° | 15°, 24°, 36° | 15°, 24°, 36° |
| Size | D85xH53MM | D105xH57MM | D130xH64MM |
| Products Name | Waterproof COB Downlights featuring DALI Dimmable Technology |
|---|---|
| Body Color | Sandy White / Sandy Black |
| Reflector Color | Matte Black/ Matte White / Matte Silver/ Gun Black / Golden |
| Materials | Aluminum Body + Lens + PC Reflector |
| IP Rate | IP65 |
| Add Honeycomb | Not Available |
| Anti glare | Yes |
| UGR | <19 |
| Flicker Free | Yes |
| Installation | Recessed Type |
| Certificates | CE-EMC, CE-LVD, RoHS, FCC, C-tick |
| Working Voltage | 220-240VAC / 100-277VAC |
|---|---|
| Frequency | 50/60Hz |
| Power Factor(PF) | >0.9 |
| Driver Brand | Lifud / Eaglerise / Kegu / Philips / Osram |
| Dimmable | Non-DIM / TRIAC / 0-10V / Dali / Push Dimming |
| Total Harmonic Distortion(THD) | ≤15% |
| Color Temperature | 27/30/40/45/50/60K Warm White/Neutral White/ Day White/ Cool White |
|---|---|
| Lighting Efficiency | 100lm/W (COB) , 120lm/W(SMD) |
| COB chip Brand | Bridgelux / CREE / Philips / Osram COB / Epistar SMD |
| Color Render Index | Ra>80 / Ra>90 / Ra>95 |
| SDCM | <5 |
| Anti Glare | Yes (UGR<19) |
| Flicker Free | Yes |
| Ambient Humidity | 10%~90% |
|---|---|
| Ambient Temp. | -20 ~ 50℃ |
| Storage Temp. | -30 ~ 80℃ |
| Working Temp. | < 60℃ (Ta=25℃) |
| Life Span | >50000 Hours (LM80) |
| Warranty | 3 Years |
